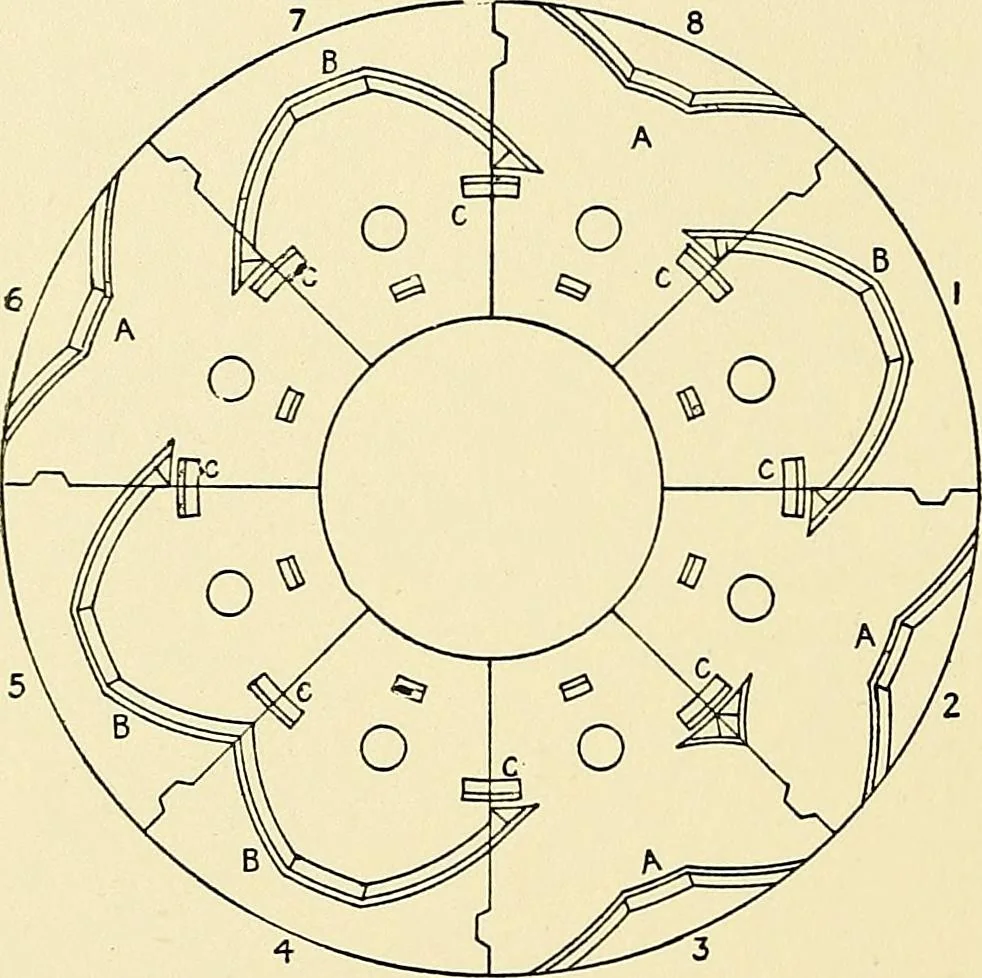

below are small flangebars similar to those on the depresser sections. Through the centreof each section a bolt hole is pierced. As they stand, the sectionshave no unity; they lie together in close enough order, but wouldhardly work in that condition. To give them unity and form a com-plete tappet… … Fig. 270.—Woodcrofts Positive Tappet A, A, A, A, Depressing flanges. B, B, B, B, Lifting flanges,c, c, c, c, C, c, c, c, Segments of tappet ring. i, 2, 3, 4, 5, 6,7, 8, Tappet plates. THE TAPPET SYSTEiM OF WARP SHEDDING 27 The eight sections of the other seven plates are assembled in thesame…
