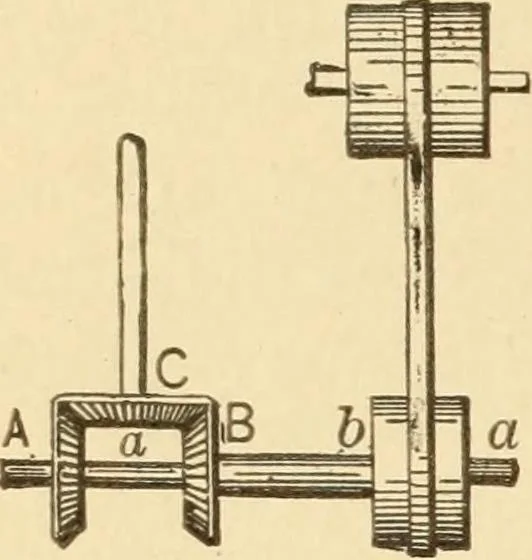

36 TRANSMISSION OF POV/ER. … 95. STOP, DRIVING, AND REVERSINGMOTION with a single belt, which may be oper-ated either way : from the drum on a driving shaft,or from the bevel gear on shaft C. The middlepulley being loose on shaft a^ the right-handpulley tight on shaft a, left-hand pulley tight onthe hollow shaft B, b. The…
