Engelman's autocraft; being an instructive study of the automobile; its care and management; how to drive; locating troubles and repairing them; with chapters exploiting some of the latest devices used in automobile construction (1914)
Engelman, Roy Albert, b. 1889 · Cincinnati, O., The American chauffeur publishing co. · leaf 94

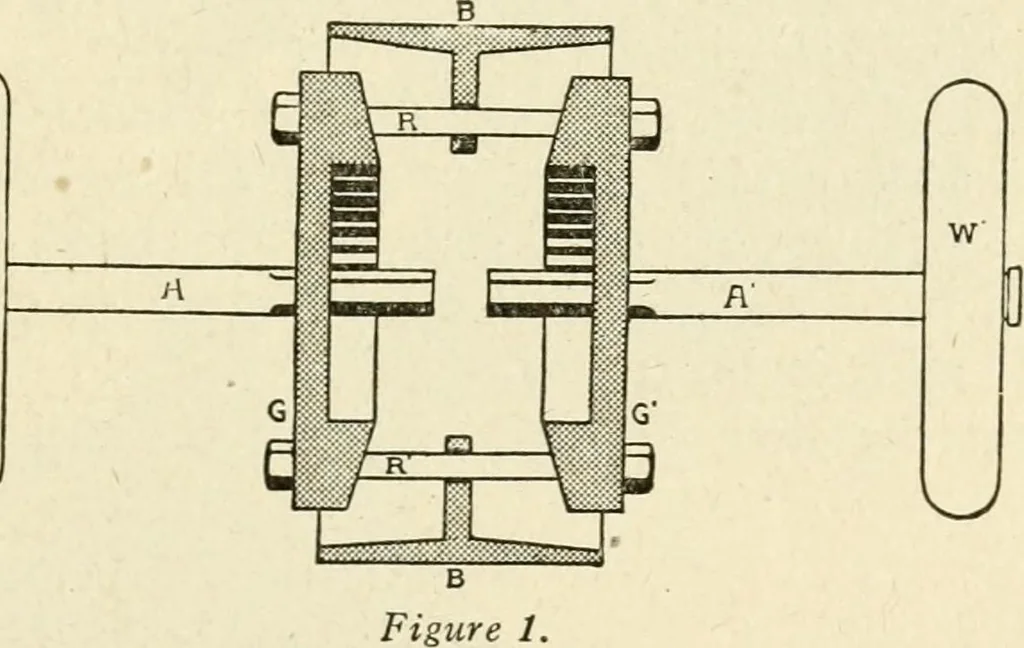

at the same speed in the samedirection. Now, to allow the wheels W—W, and, there-fore, the gears G—G, to revolve at differentspe:ds, we remove the rods R—R binding the twogears together and substitute for these rods thepinions shown in Fig. 2. These pinions rotatefreely on the web of pulley B and… … \y the wheels W—W just as it was transmitted inthe apparatus shown in Fig. 1, but with this im-portant difference—if wheel W is now preventedfrom revolving, the pinions will rotate on the weband thus allow the gear G to revolve, carryingwith it axle A and wheel W. If gear G revolves slowly, gear G…
