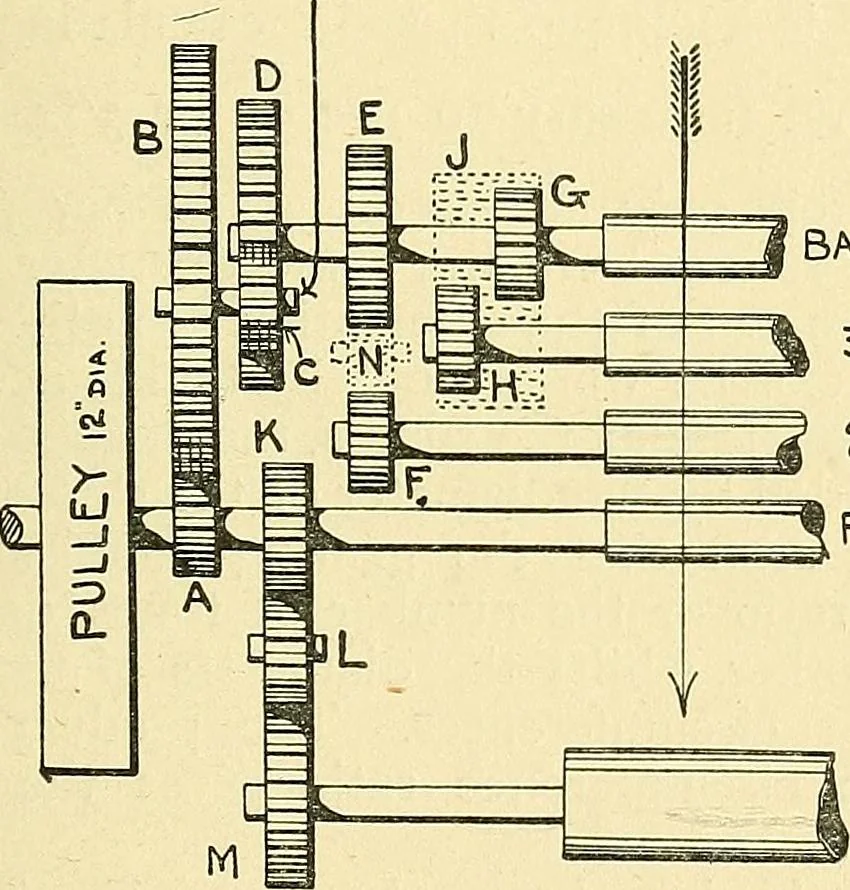

t of the draft is theratio of the surface speed of the second rollers to that of thefirst rollers, through which the fibrous material passes. Bydividing the faster surface speed by the slower surface speedwe obtain the draft between the drawing rollers. In Fig. 46 the plan view is shown of several… … j FRONT ROLLED. CALENDER ROLLER. roller will have the slowest surface speed and the front roller thefastest surface speed of the four lines of rollers. The diametersof the rollers are shown on the sketch, whilst the teeth in thewheels are as follows:— A with 20 teeth drives B with 100 teeth. c ;j…
