Mechanical appliances, mechanical movements and novelties of construction; a complete work and a continuation, as a second volume, of the author's book entitled "Mechanical movements, powers and devices" ... including an explanatory chapter on the leading conceptions of perpetual motion existing during the past three centuries (1910)

Hiscox, Gardner Dexter, 1822?-1908 · New York, The N. W. Henley publishing company · leaf 92

An illustration from Mechanical appliances, mechanical movements and novelties of construction; a complete work and a continuation, as a second volume, of the author's book entitled "Mechanical movements, powers and devices" ... including an explanatory chapter on the leading conceptions of perpetual motion existing during the past three centuries, 1910, leaf 92

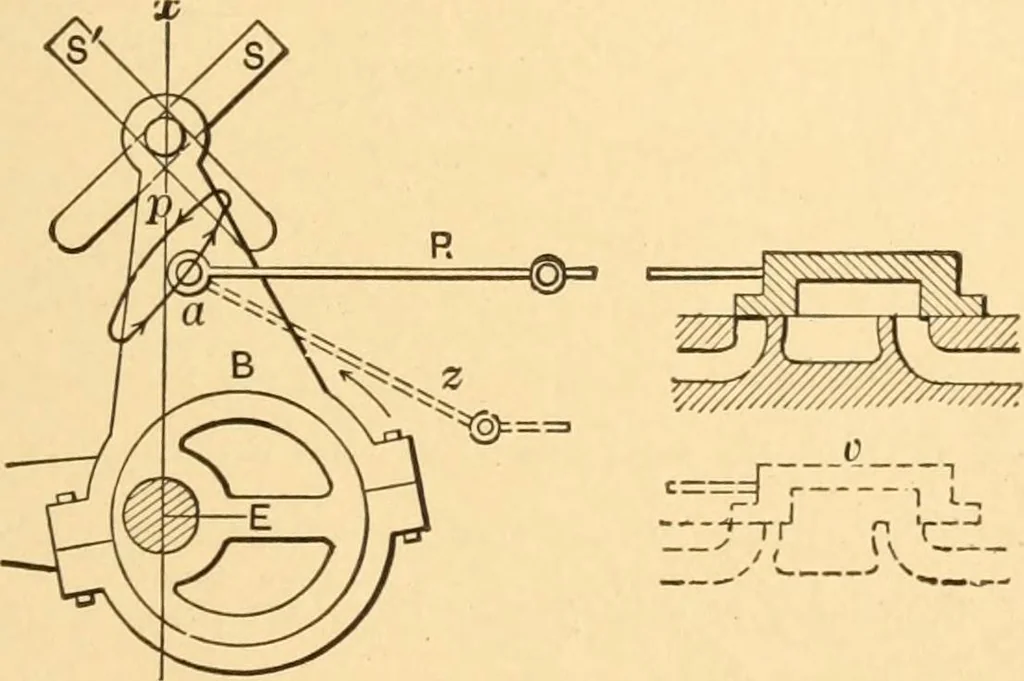

196. REVERSING GEAR. Wolf type. E, is the eccentric; B, eccentric strap and arm ;/, a pin sliding in the link,S, which is moved to the … ^^ position S for reversing;a^^-^ a R, valve rod connected to the eccentric arm at a. Theelliptic line, /, shows therange of the valve motionand swings to the verticalwith the link and moves the valve within the range of its lap. 197. Valve just opening, forward. 198. Valve just closing, reverse.…

Mechanical movements
