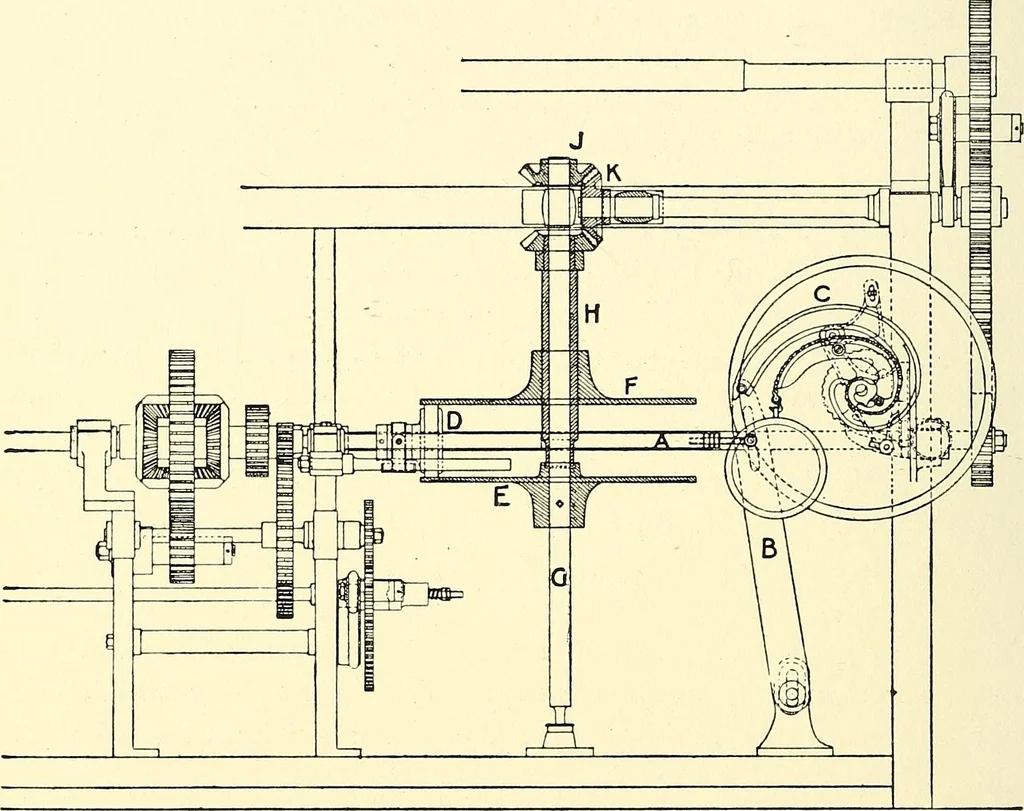

e discs are fixed on 30 SPINNING vertical shafts, the shaft of the lower disc being contained in theshaft of the upper one. On the ends of both shafts are pinions,which, fitting into opposite sides of a horizontal bevel wheel, aredriven in contrary directions, though on the same axis. To… … Fig. 124.—Disc-regulating Motion for Roving Frames (Fairbaiin Macpherson) A, Sliding-rod actuated by the lever B and scroll c, and carrying a friction bowl D, slidinsj upon a feather onthe rod A, and driving the differential gearing as shown. E, F are discs, the lower one keyed to the verticalshaft…
