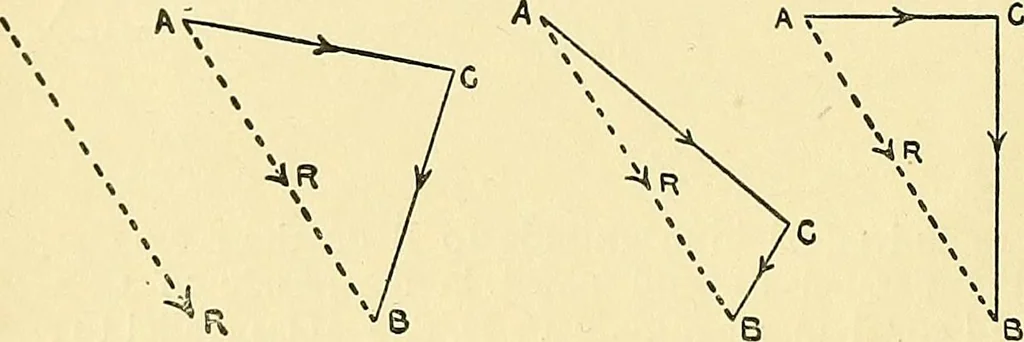

ling the condition required,and their magnitude can be measured to scale. Since we have no information as to the direction to draw ACin Fig. 89, we may draw it in any direction and also make itany magnitude ; so a further diagram is given in Fig. 90, and thetwo forces AC and CB are shown, which… … Fif.88. Fi«|.89. Fi«^.90. R^.91. ^>iR C ^ B R02. solutions to the problem. By measuring the lines AC and ABin each diagram by our scale we obtain the magnitude of eachpair of forces, of which AB is the resultant. The resolution of a resultant into two forces whose directioncan be chosen to suit…
