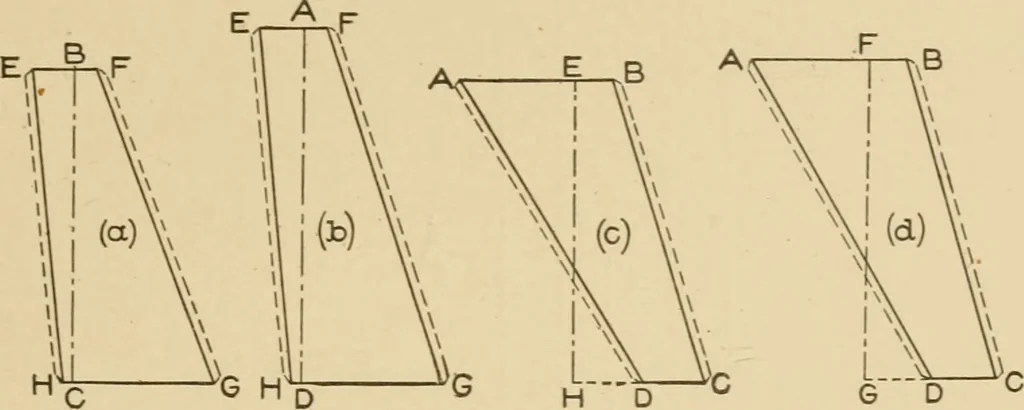

ertical line B C in Fig. 72. Through the points B andC draw the horizontal lines E F and H G, making B F and B E,and C G and C H equal respectively to the distances measured fromthe line U V in Fig. 71 to points F, E, G, H. Draw lines fromE to II and F to G in Fig. 72, which is the pattern for (a).… … Fig. 72. respectively to the distances measured from the line U Y in sideelevation in Fig. 71 to points F, E, G, H. Draw lines from Eto H and F to G in Fig. 72, which will be the pattern for (b). Insimilar manner obtain the patterns for (c) and (d) in plan in Fig. 71,The lenp-ths of E II and F G…
