Textile raw materials and their conversion into yarns : (the study of the raw materials and the technology of the spinning process) a text-book for textile, trade and higher technical schools, as also for self-instruction ; based upon the ordinary syllabus and curriculum of the Imperial and Royal Austrian weaving schools (1901)
Zipser, Julius, Salter, Charles · London : Scott, Greenwood · leaf 135

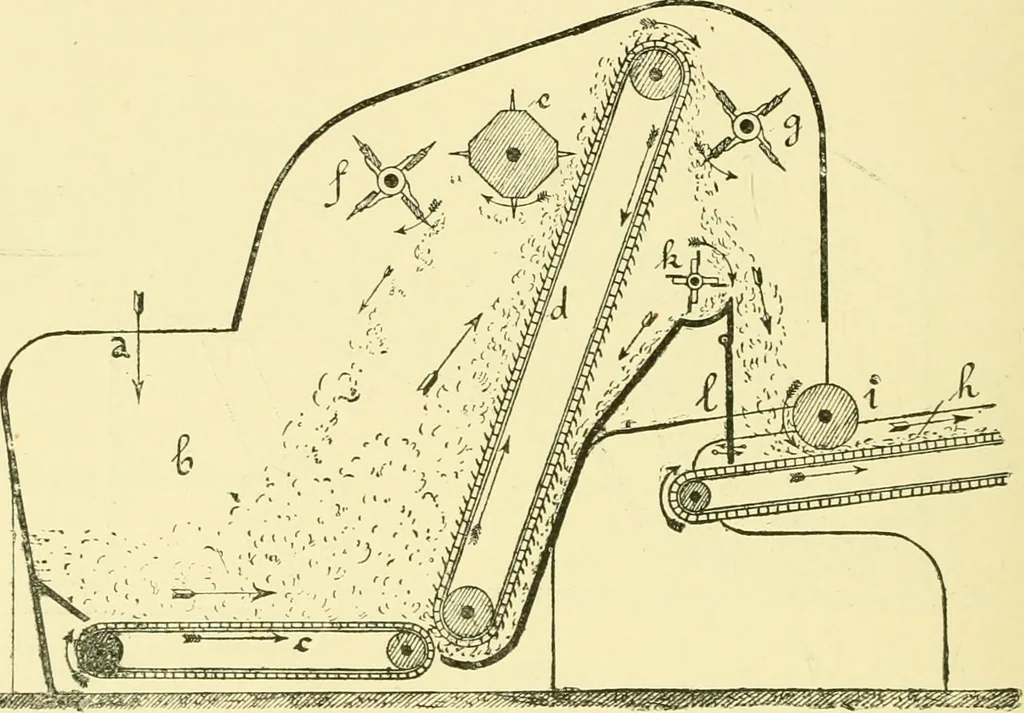

ion 128 TEXTILE RAW MATERIALS. of the cotton. Just above the top of this elevator is placeda rotary regulating roller, d, inside of which is a frame, e, fittedwith four arms, which carry bars extending the whole widthof the machine and studded with pins, /. The frame ismounted on the eccentric… … Fig. 40.—Hopper Feeder, with Beaters (vertical section). and are withdrawn when the latter turns round further, thusstripping the excess of cotton from the elevator pins andthrowing it back into the hopper. As the pins in the regulatingroller always retreat, the side nearest the hopper is left…
