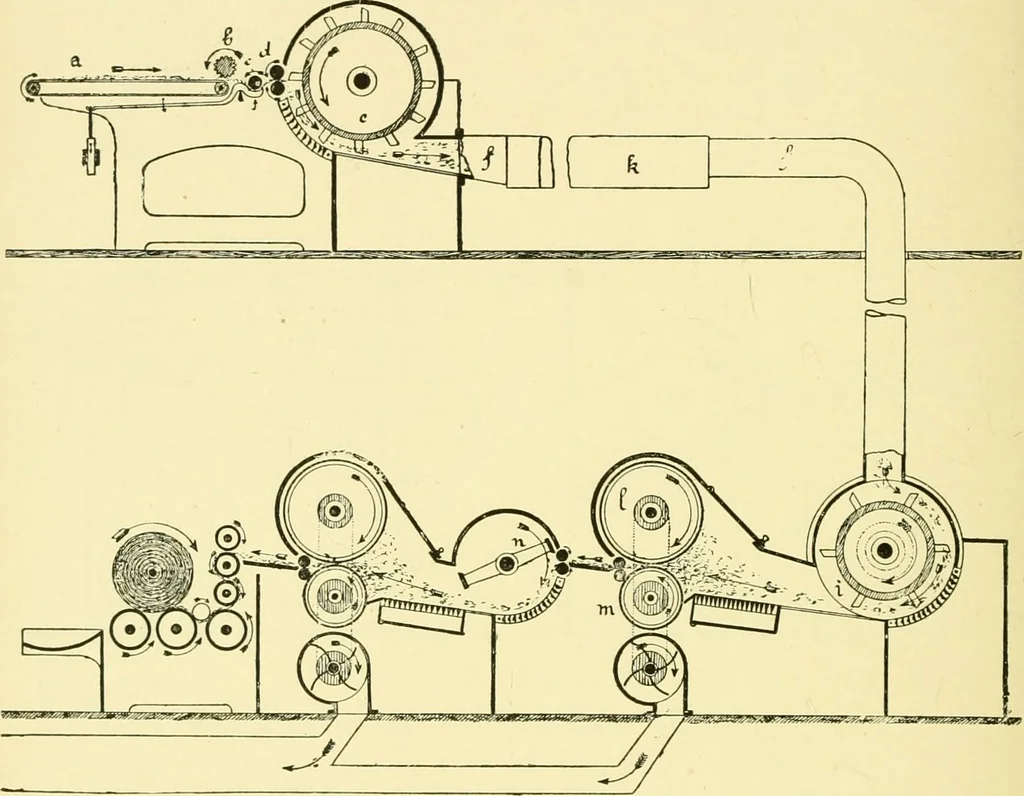

ial blades of hardened steel, whereby the material isexpelled into a long sheet-metal pipe, /. An exhaust fan, g,(see sectional view, Fig. 46) draws the cotton through this 138 TEXTILE RAW MATERIALS. pipe, which forks in the manner shown and discharges intothe casing surrounding the openers, h, i,… … Fig. 45.—Exhaust Opener combined with Single Scutcher and Lap Machine(vertical section). the beater, ji. Two sets of dust boxes, k, are provided in thepipe, /, an opportunity being thus afforded for the dust tosettle during the conveyance of the cotton to the exhaustopener; and as these boxes can…
