Textile raw materials and their conversion into yarns : (the study of the raw materials and the technology of the spinning process) a text-book for textile, trade and higher technical schools, as also for self-instruction ; based upon the ordinary syllabus and curriculum of the Imperial and Royal Austrian weaving schools (1901)
Zipser, Julius, Salter, Charles · London : Scott, Greenwood · leaf 183

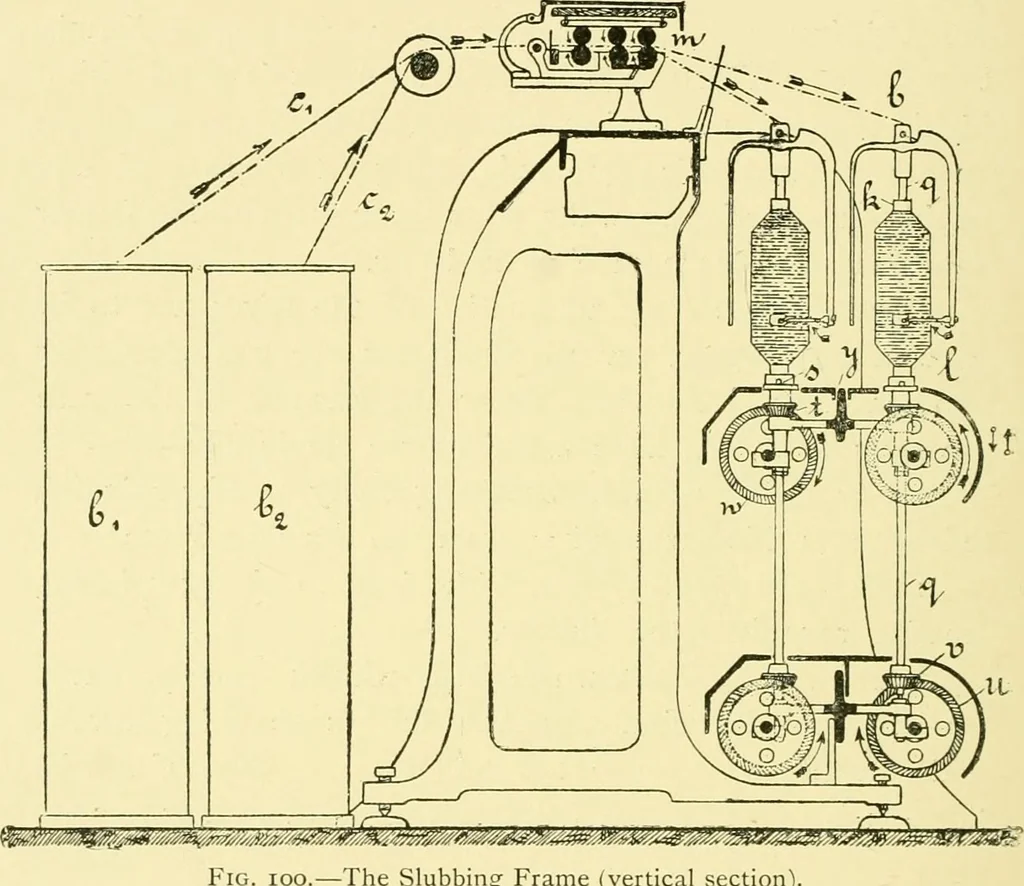

of three pairs of rollers, arrangedsimilarly to those of the drawing frame, and produces a four-to fivefold draft, two slivers, c^ c^, being drawn from the cans,b^ h-, by each head and attenuated to the requisite degree. 170 TEXTILE RAW MATERIALS. The reduced sliver has then to be slightly twisted,… … -The Slubbing Frame (vertical section). The flier—a so-called presser flier—is shown in Figs. loito 105, Fig. loi being a front view, Fig. 102 a longitudinalsection, Fig. 103 a view of the right-hand side, Fig. 104 a topview, and Fig. 105 a section through the right arm of the flierand top view of…
Textile fibers · Spinning
