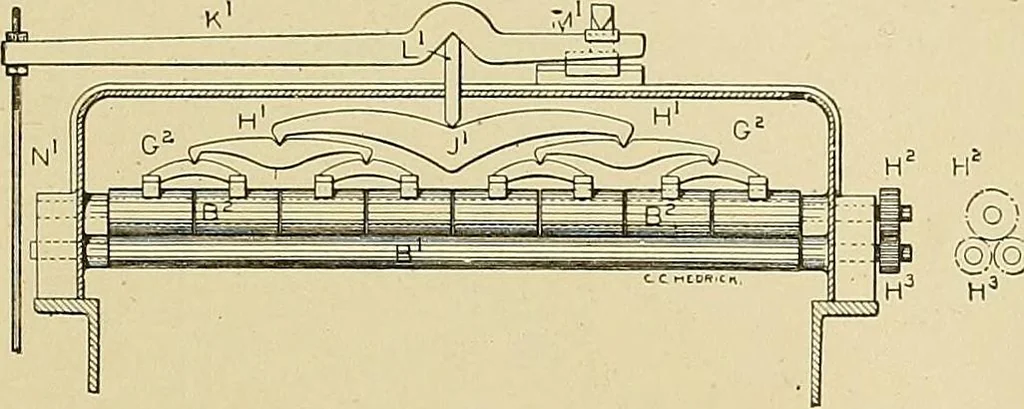

Section Showing Evener Rollsand Feed Rolls. 78 COTTON SPINNING. 43 and Di, and the evener rolls, B^ and B^, are driven by the gears,Ci and El. It will be seen that by this arrangement any changeill the speed of thee levating apron directly affects the speed of theevener and feed rolls. Fig. 32 is a… … Fig. 33. Elevation Showing Evener Rolls and Levers. The cotton passes along en the feed apron, F^, under the pressroll, G^, and is drawn between the bottom evener rolls, B^, andthe top evener roll, B^, and then hitweeu the feed rolls, A^. Thebottom evener rolls, which are aljout 2 inches in…
