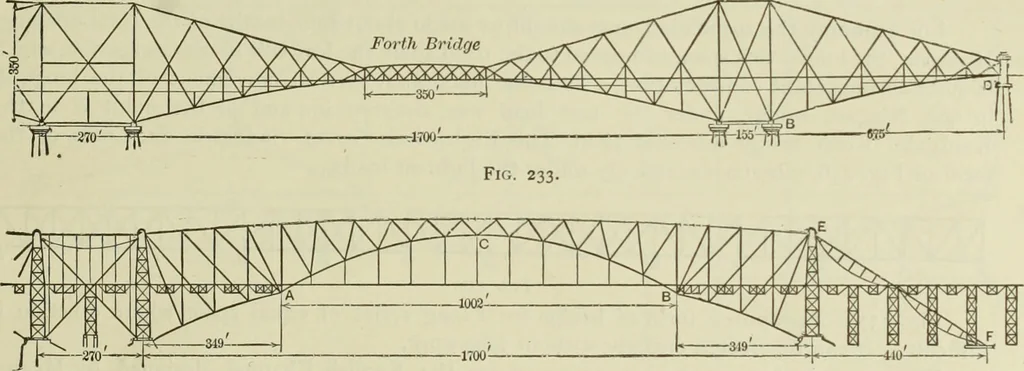

Fig. 232. in Fig. 232. The bridge is continuous from E to F, and at these points are hung the ends oftwo simple trusses AE and ED. Since this bridge was constructed several very large cantilever bridges have been builtin America and elsewhere, notably the great Forth bridge. Fig. 233, the Niagara… … Fig. 234. span DE is hung from the ends of two double cantilevers, AD and EH,&z.c\\ of which has twopoints of support, one at the abutment (not shown in the figure) and one at the pier. Therebeing no diagonals in the panels over the piers, the trusses are free to turn at those points as…
