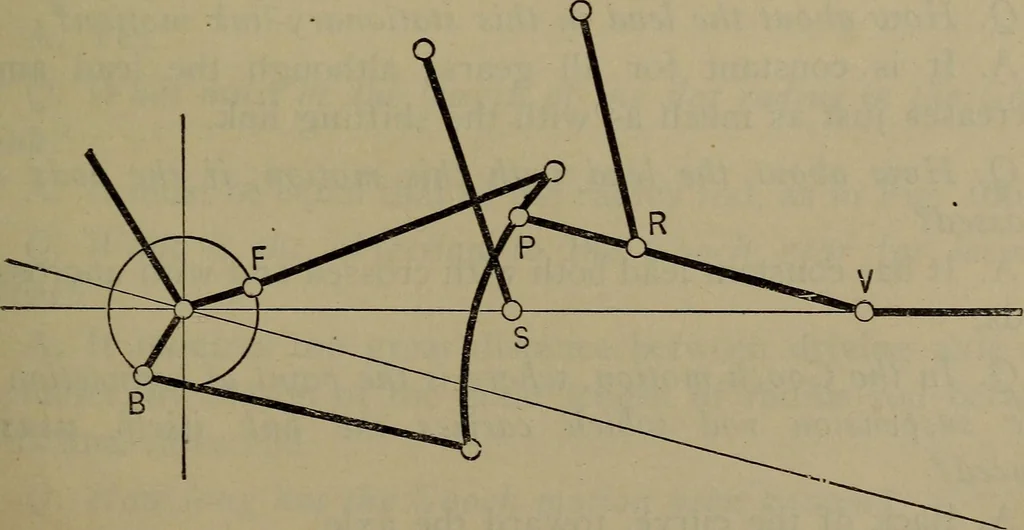

Fig. 165. Stationary Link. A. Valve motions are made, in which the link is not raisedand lowered, but the block is; but in this case the convexityof the link-slot curvature is toward the axle and eccentric,instead of the concavity being so turned. One such motion, T … Fig. 166. Gooch Valve Gear, Open Rods. 266 LOCOMOTIVE CATECHISM. known as the Gooch gear, is outlined in Fig. 166, with thelinks uncrossed. In B is the center of the backing eccentric;F that of the forward eccentric; ^ being the saddle and thepoint of suspension of the link; P the block attached to…
