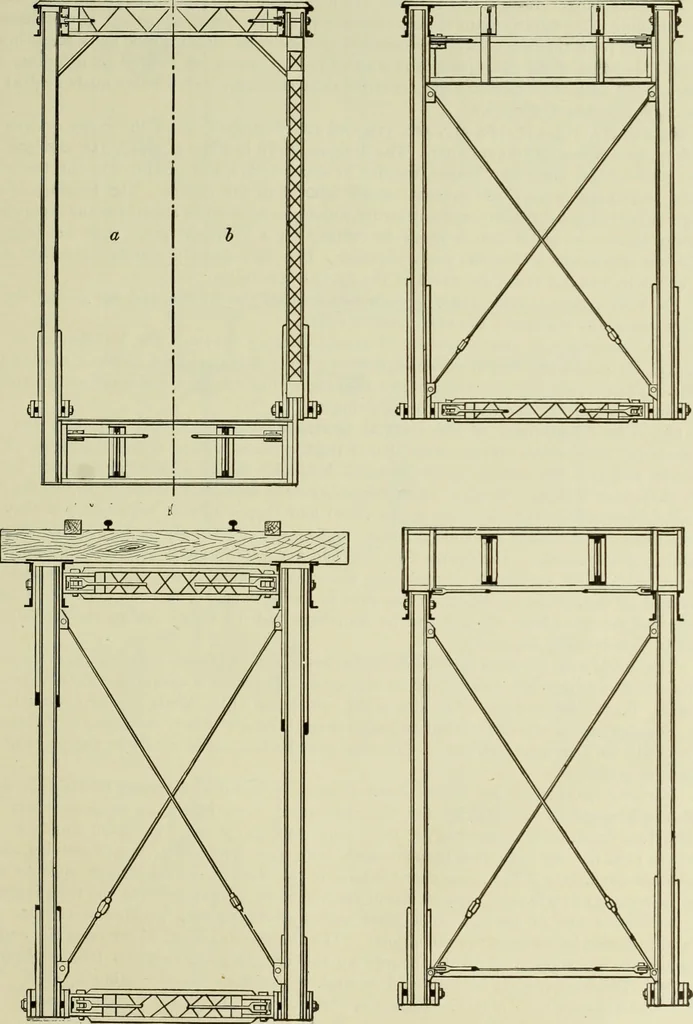

Fig. 315. Fig. 316. DETAILS OF CONSTRUCTION.Fig. 317. Fig. 318. 2 … Fig. 319. Fig. 320. I 284 MODERN FRAMED STRUCTURES. I led to the adoption of the plate hanger (Fig. 317^) for the late designs of the Pegram truss.In the latter case the lateral connection is made as shown in Fig. 316 or 328. The plate hanger detail is one in which the floor-beam is riveted to a…
