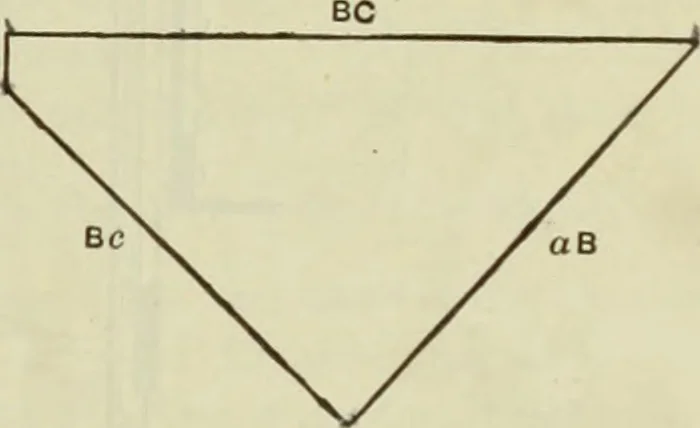

omponent of the maximum stress in Cel. The stress in BCis transferred to CD directly by a butt joint. The allowed bearing pressure per square inchis 8400 X = 12,600 lbs. The bearing area is 52^0012,600 = 4^ square inches, or fora 4-j-^-inch pin the thickness required is 4|- 4^^^ = W inches. The web… … Fig. 365. * The dead load concentration at this joint is neglected in these computations. 334 MODERN FRAMED STRUCTURES. is required. The bearing required for Cc is 64,400 12,100 = 5| square inches. The thick-ness required is 5| 4^^ = inches. One plate f inch thick will be used on each side ofthe…
