The theory and practice of modern framed structures : designed for the use of schools, and for engineers in professional practice (1897)
Johnson, J. B. (John Butler), 1850-1902, Bryan, C. W. (Charles Walter), 1863-1927, Turneaure, Frederick Eugene, 1886- · New York : J. Wiley & Sons · leaf 560

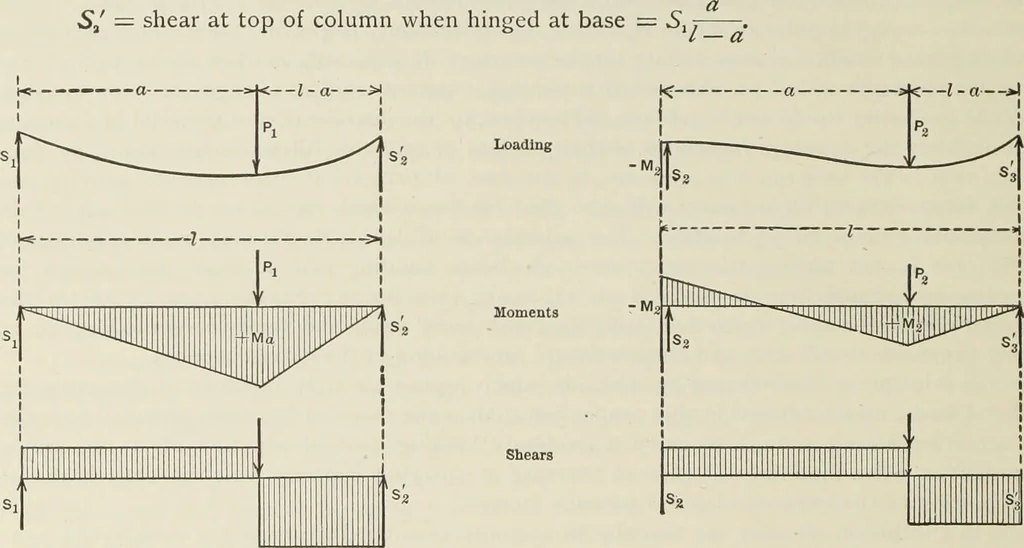

ce or to the point of applicationof the load P, or ; * The authors are indebted to the courtesy of the management of the Keystone Bridge Works for the drawings ofwork, constructed by them, from which these details were selected. 47C MODERN FRAMED STRUCTURES. I S, = the horizontal component of… … Case I. Case n. Fig. 450. Unknoivn Terms : S, = shear at top of column when fixed at base; P, = horizontal thrust or load at foot of knee-brace due to the leverage action of thecolumn when hinged at base ;= horizontal thrust or load at foot of knee-brace due to the leverage action of the column…
