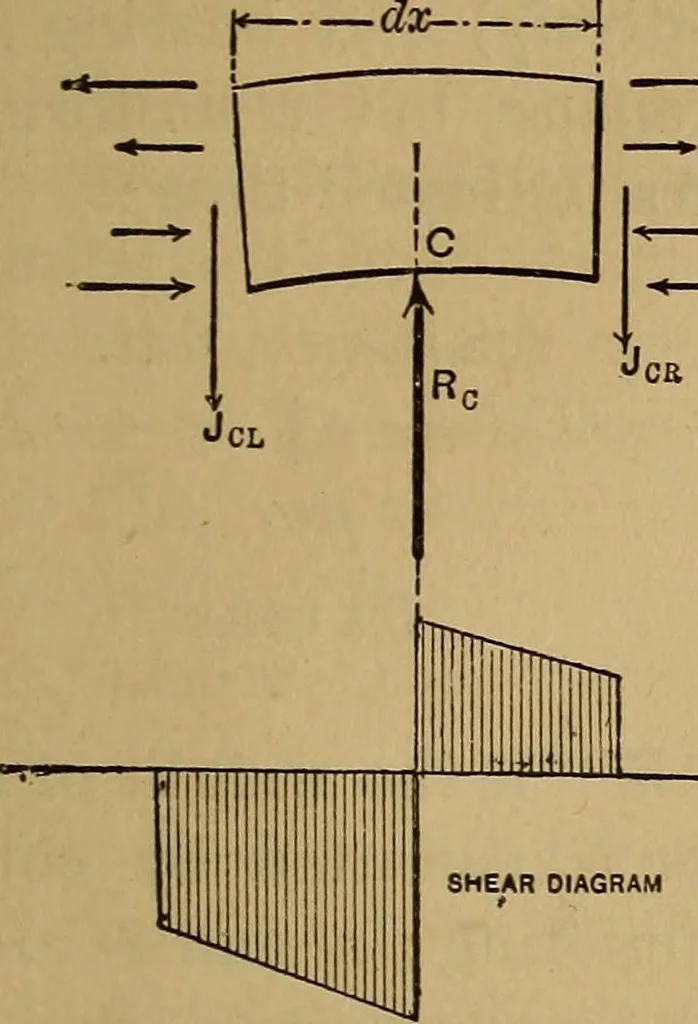

its two extremepoints and its pole-distance H, is then constructed by§ 341. (4.) The shear. Since the last construction involvesdrawing the special force-diagram for each span, with aray corresponding to each part of the span between twoconsecutive loads, the shear at any section of the beam… … Fig. 449. librium, i.e., IY = 0 (§ 36), we have ordinates a shear-diagram maynow be constructed, if desired, foreach span. The directions of theshears should be carefully noted.(5.) Reactions of supports. Letus consider free the small por-tion of the girder, at each pointof support, included…
