Wood, De Volson, 1832-1897 · New York, J. Wiley & Sons · leaf 81

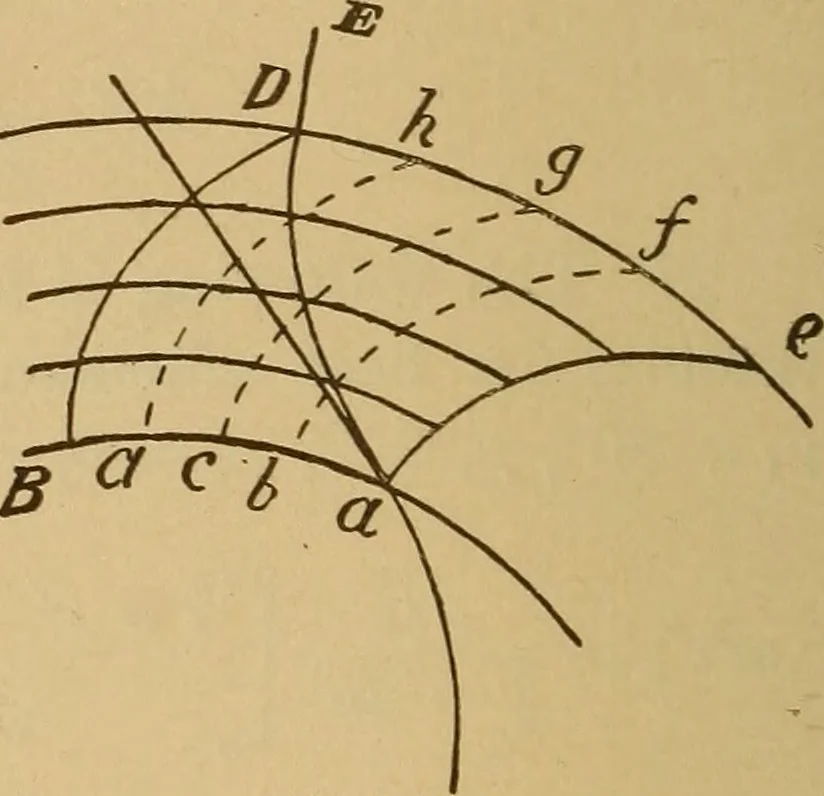

Fm. 9. Fig. 10. 28. The path of the ivater is easily constructed for this wheel.Since the radial velocity is uniform, the time of flowing through the wheel will be r2 — n t = Vi (82) during which time the initial rim AB, Fig. 10, will have travelled aB = oorxt feet (83) Divide r2 — rx into equal…
Turbines
