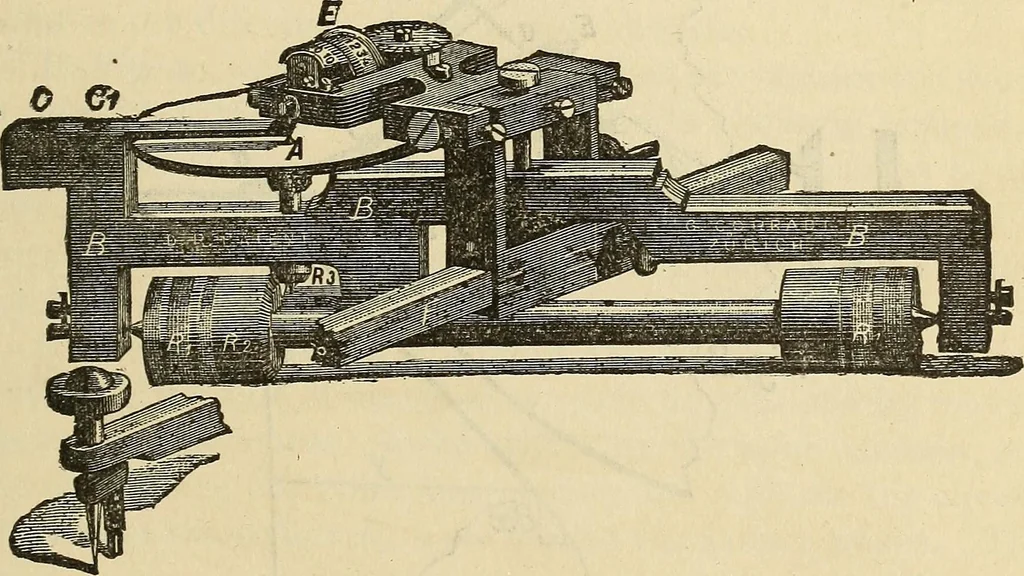

in certainlimits on either side. It is therefore especially adapted to themeasuring of cross-sections, profiles, or any long and narrowsurface. Fig. 38 shows one form of this instrument as de-signed by Herr Corradi of Zurich. It is a suspended planim-eter, inasmuch as the wheel rolls on a flat disk… … Fig. 38. the two rollers R^. To this frame are fitted the disk A and theaxis of the tracing-arm F. The whole apparatus may thus moveto and fro indefinitely in a straight line on the two rollers whilethe tracing-point traverses the perimeter of the area to bemeasured. The shaft carries a bevel-gear…
