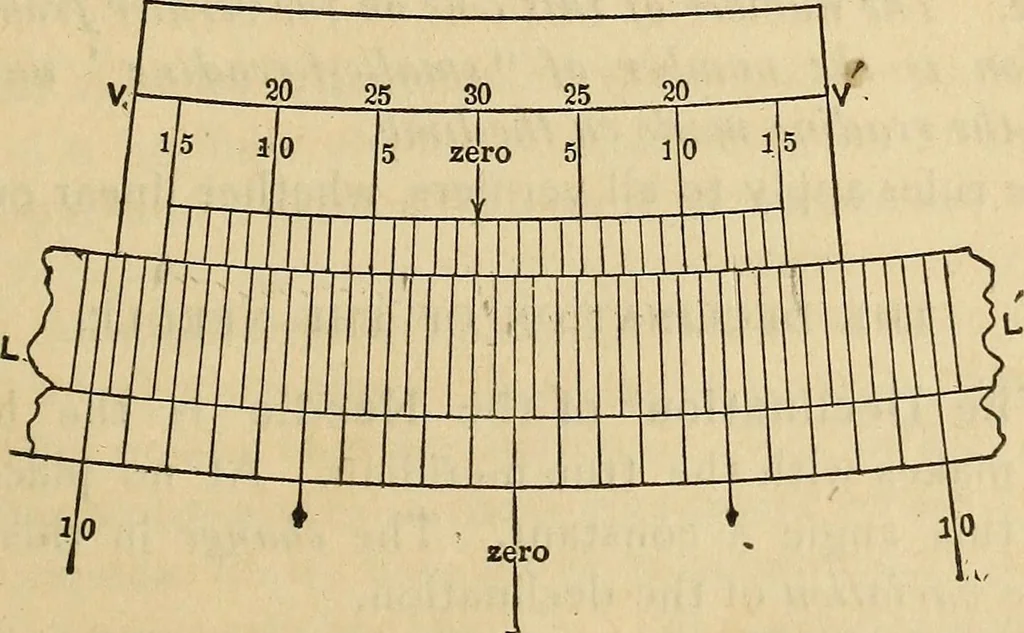

Fig. 5. In Fig. 5 are shown two direct verniers, such as are usedon transits with double graduations. Thus in reading to theright the reading is 138° 45^ but in reading to the left it is 221°15^ In each case we look along the vernier in the direction ofthe graduation for the coincident lines. … Fig. 6. In Fig. 6 is shown a special form of retrograde vernier inwhich the same set of graduation-lines on the vernier serve for 20 SURVEYING. either right- or left-hand angles. Here a division of the vernieris larger than a division on the limb, and it must therefore beread backwards. Thus, we…
