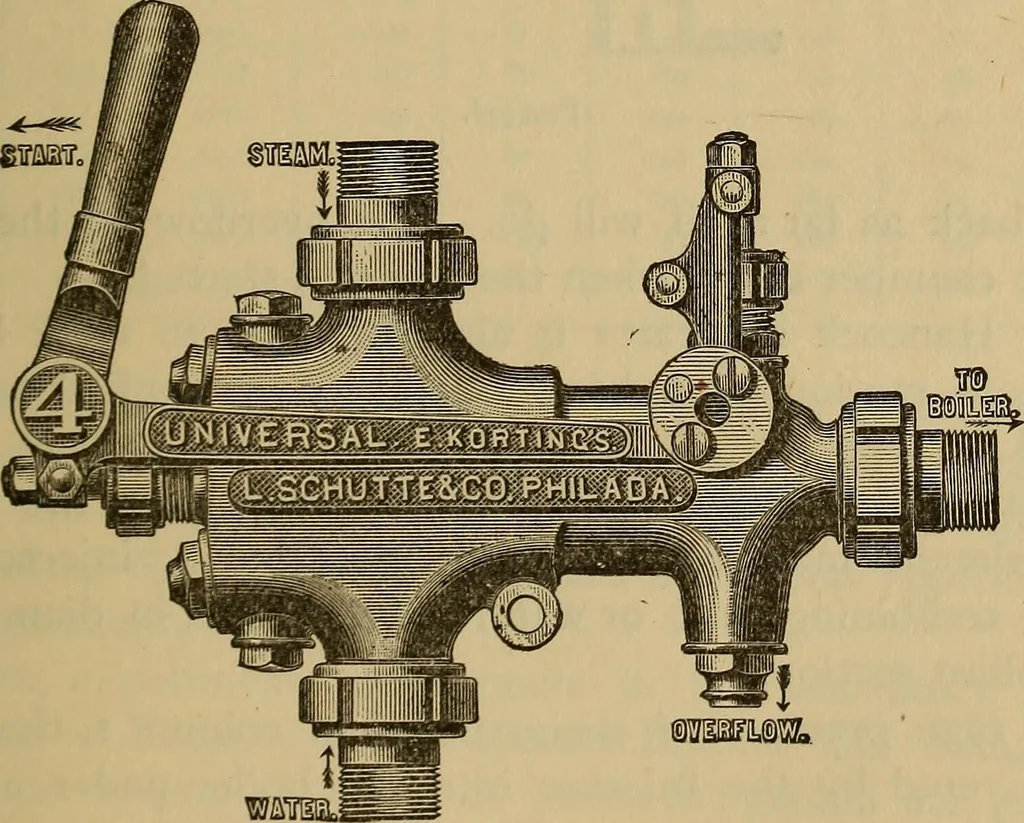

ered to the boiler. At i is a valveconnecting the intermediate chamber with the delivery, andat 3 is the overflow-valve. To start the inspirator, close 2, and open i and 3. Let onsteam, and when water appears at the overflow close i. Open2 a quarter of a turn, and then close the overflow, upon… … KiG. 35«. The Korting injector is shown by Figs, ^^a and 35<5. Thearrangement and action of the parts is evident without detailed 158 THERMODYNAMICS OF THE STEAM-ENGINE. description. The handle is moved a short distance till thelower or forcer valve, which opens first, has given steam to…
