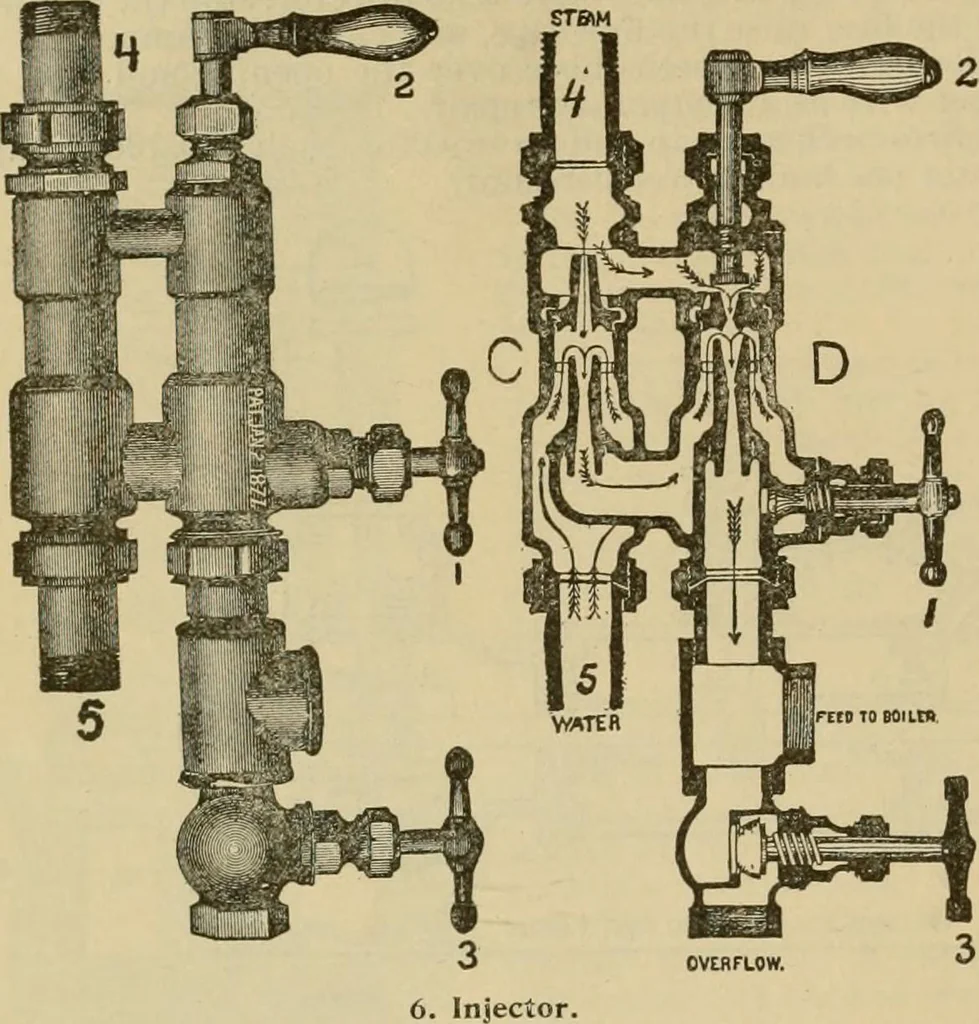

stand. 65. Suction flange. 16. Piston tongue. 37. Blow cock. 57. Piston nut. 17. Piston-tongue spring. 38. Water cylinder. 58. Plunger nut. IK. Piston-tongue bracket. 39. Water-cylinder head. 61. Vi atcr-c.ylinder foot. 19. Piston-rod slutting box. 40. Plunger. 63a Solid water piston ring. 20.… … 11. The injector lifts, heats, and forces the water into the boiler but it is notso easily regulated to a small continuous flow as the pump. (a) It has four nozzles: The steam nozzle 4, through which a jet of steamfrom the top of the boiler first passes; the combining nozzle C at whose extrem-ity…
