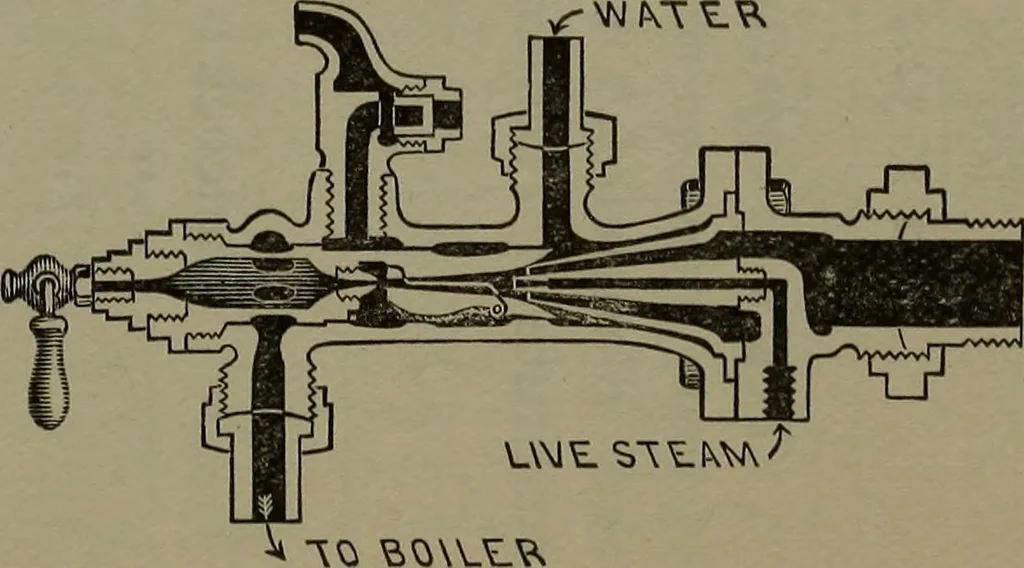

ining-tube is divided, and one side ishung on a hinge and can open to givefree exit to the overflow when theinjector is started. When the injectoris working it closes down into place.The calculation for an exhaust-steaminjector shows that enough velocitymay be imparted to the water in… … 1146.6 — 68.0168.01 — 8.06 = 18.0 pounds of water per pound of steam. Adiabatic expansionto the pressure of 7.8 pounds will reduce the steam to thequality 642.7/965.8 \ 9^9^ + °3127 °2667> = °9649 xn = The velocity of the steam will be Vs = 52x32X778(1146.6—0.9649X986.9—150.6)^=1480 feet.…
