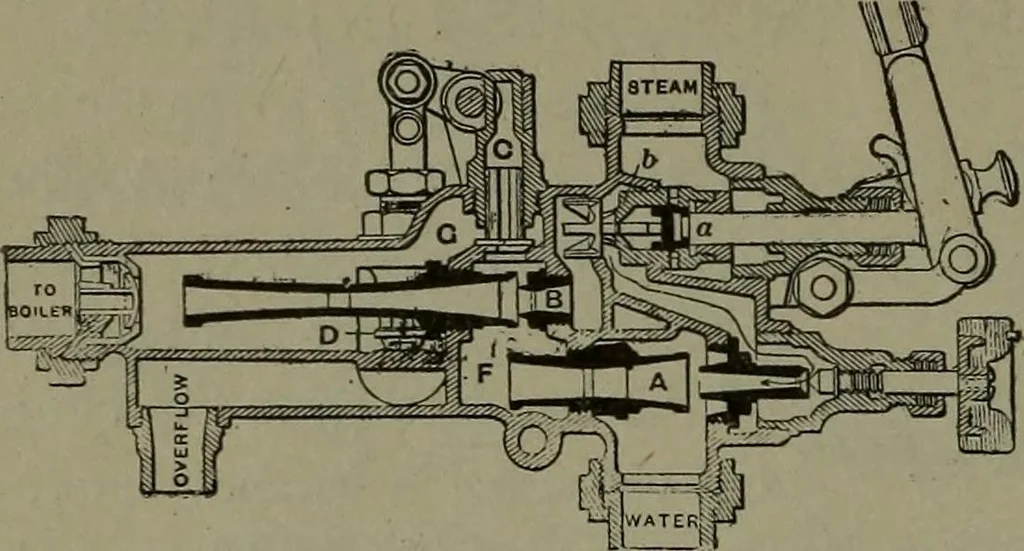

389. HANCOCK INSPI-RATOR.—A double-tube injector.The tube A lifts the water andstarts the circulation through theoverflow, when the steam nozzleB is opened and valves C andD are closed. 390. BALL-VALVE INJECTOR, automatic in action. J, J, ball valves.P, steam inlet.W, inverted nozzle.Q, suction… … 391. HANCOCK LOCO-MOTIVE INSPIRATOR, a double-tube injector. A, the lifting nozzle and tube.B,the forcingnozzle andtube. C, the lift overflow. D, the force overflow. Two movements of the handle are required for starting; the firstopens the starting valve a and overflow D, Avith valve H open.…
