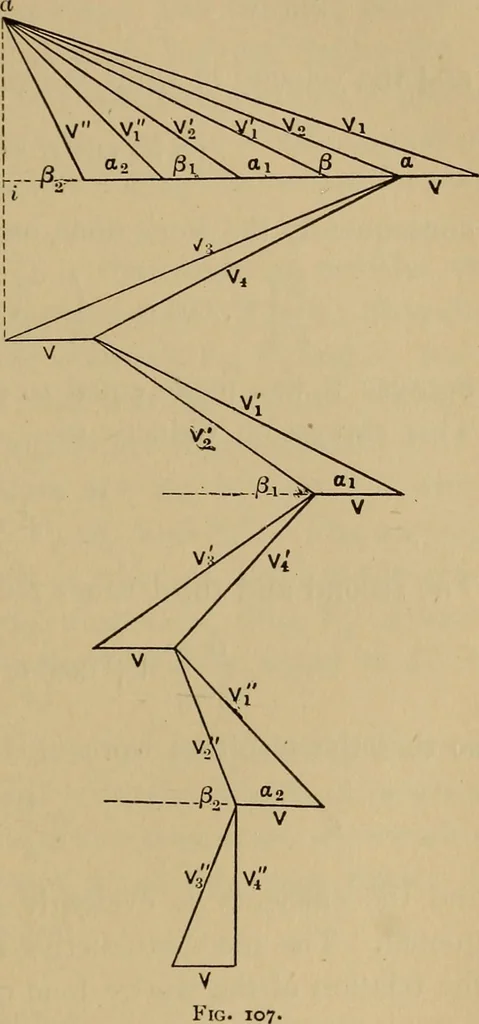

reversed by astationary guide, and thevelocities of the third vane areF/, F/, F3 and F/. Thediagram is constructed bydividing the velocity of whirl Vy, = Fj cos ix into SIX equal parts, and the final exit velocity F/ is vertical,indicating that there is no velocity of whirl at that place. It is… … as given by equation (291) page 481. 488 STEAM-TURBINES It is, however, interesting to determine the work done on eachvane; the sum of the works of course leads to the same result.In Fig. 107 the velocity of whirl at entrance to the first vane is Fj cos a and the velocity of whirl at exit is • — V4…
