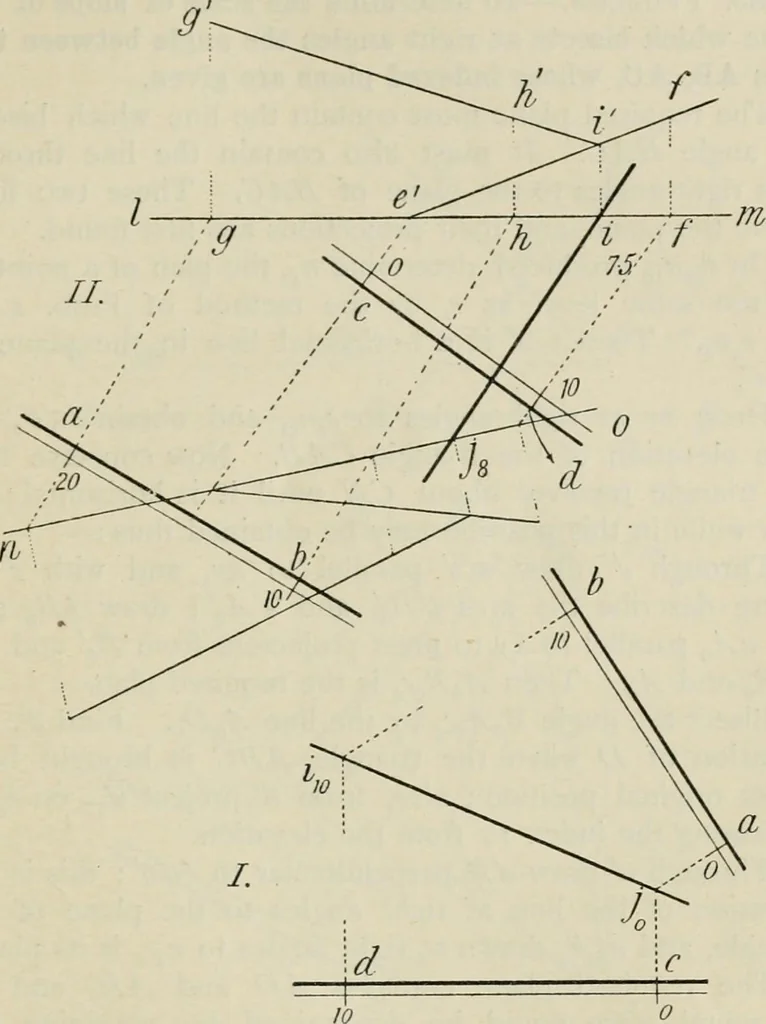

e, say no, the point j8is obtained in a similar manner ; hence /7.5/s is the requiredindexed plan. This method is applicable to any case where the line ofintersection is within the limits of the paper. Case III. (no figure).—Let the scales of slope beparallel to each other. In this case the… … Take xy parallel to ab or cd, and obtain ab\ cd, the edgeviews of the two planes ; let these intersect in /. Then i isthe end view of the line of intersection, and the plan ij maybe obtained by a projector from 1. The distance of i fromxy determines the indices of i and j. Example.—Draw a…
