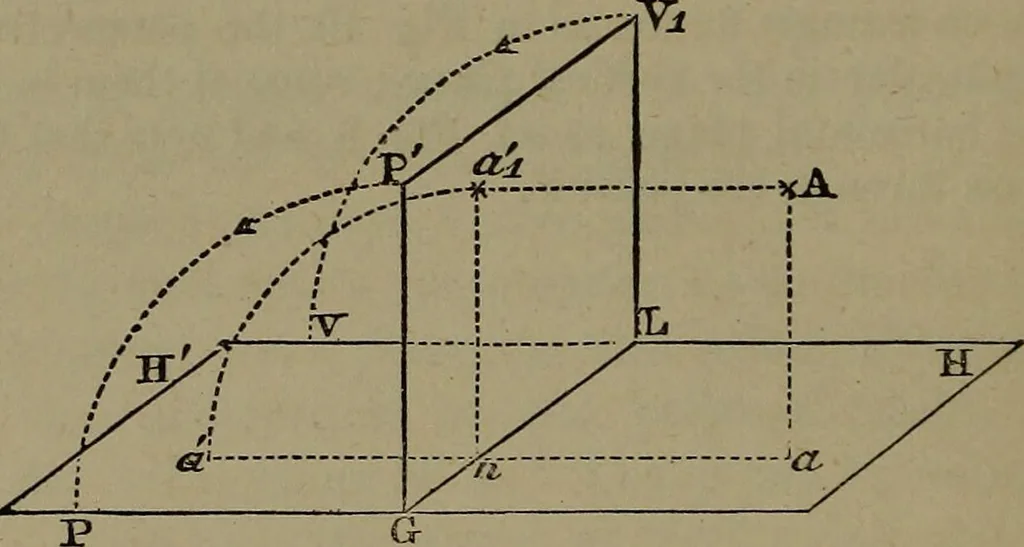

ions,and not the projections and the perspectives themselves. They arepictorial representatives of the models which would show givenobjects, the eye, the perspective plane, and visual rays, as theyactually exist in space. It is, therefore, next to he found how these projections and per-spectives… … Fig. 11. 61. From Fig. 11 it is evident that, if the vertical plane, GW,,!)e revolved directly back about the ground fine, GL, as an axis,until it coincides with the back portion, GH, of the horizontalplane, all the points of the vertical plane w^ill describe circular arcsin the direction of the…
