Training in wood-work, designed for use in manual training and technical school; consisting of three parts: carpentry, wood-turning and pattern work (1902)
Tate, James M. (James Murray), b. 1852 · Minneapolis, Minn., School Education Co · leaf 54

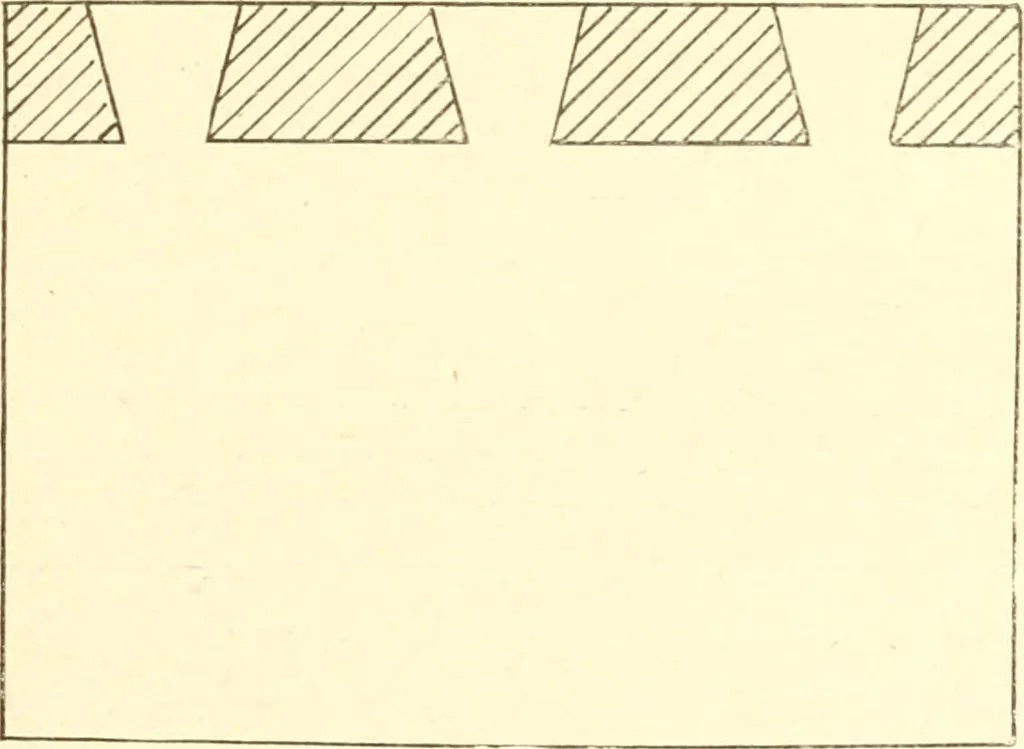

e first line drawnwith the trv sc[uare and knife. Next place the bevel squareon the end grain and adjust the tongue of the bevel so as tointersect the first line drawn on the end grain and the fine lineon No. 1. This adjustment of the bevel will serve as a guideto mark all the lines on surfaces… … Fig. 84.. portion and keep well to tlie center of the lines in paring.Next square a line on the ^ inch thick piece on surface No.I from No. 2. and Yi inch from the trued end. Next placethe •)4 inch piece in a firm position with the dressed end upand place the Yi inch piece on the end grain, with…
Woodwork (Manual training)
