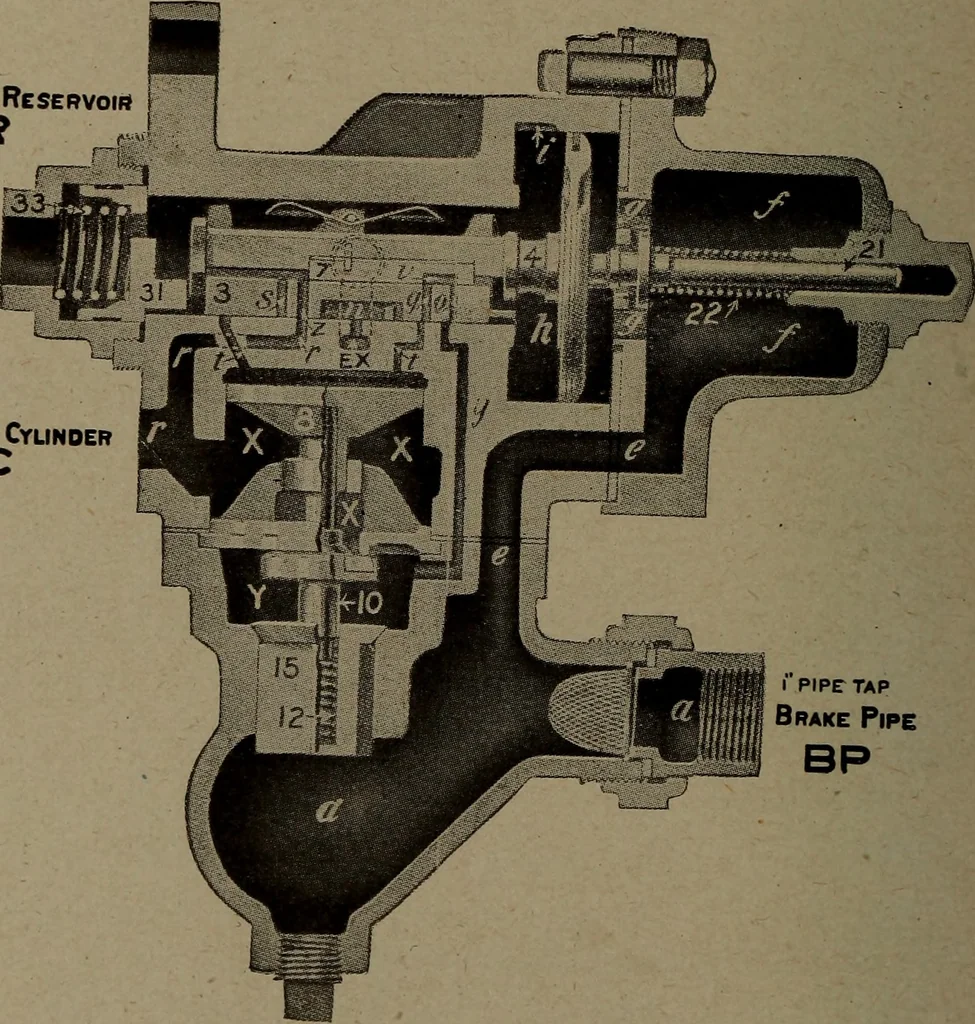

ut, closingthe feed groove in the bushing, also moving the graduatingvalve 7, opening the service Z in the slide valve. The col-lar on the triple stem then engages the slide valve, movingit out, closing the exhaust and opening the service port Rin the seat fully. The movement of the slide valve… … Fig. 14. Full Service Position WESTINGHOUSE AIR BRAKE 211 the auxiliary will continue to flow into the brake cylinderuntil the pressure on the auxiliary side becomes less thanthe brake pipe pressure, when the triple will move backto lap position. It will be seen that no air from the brakepipe…
