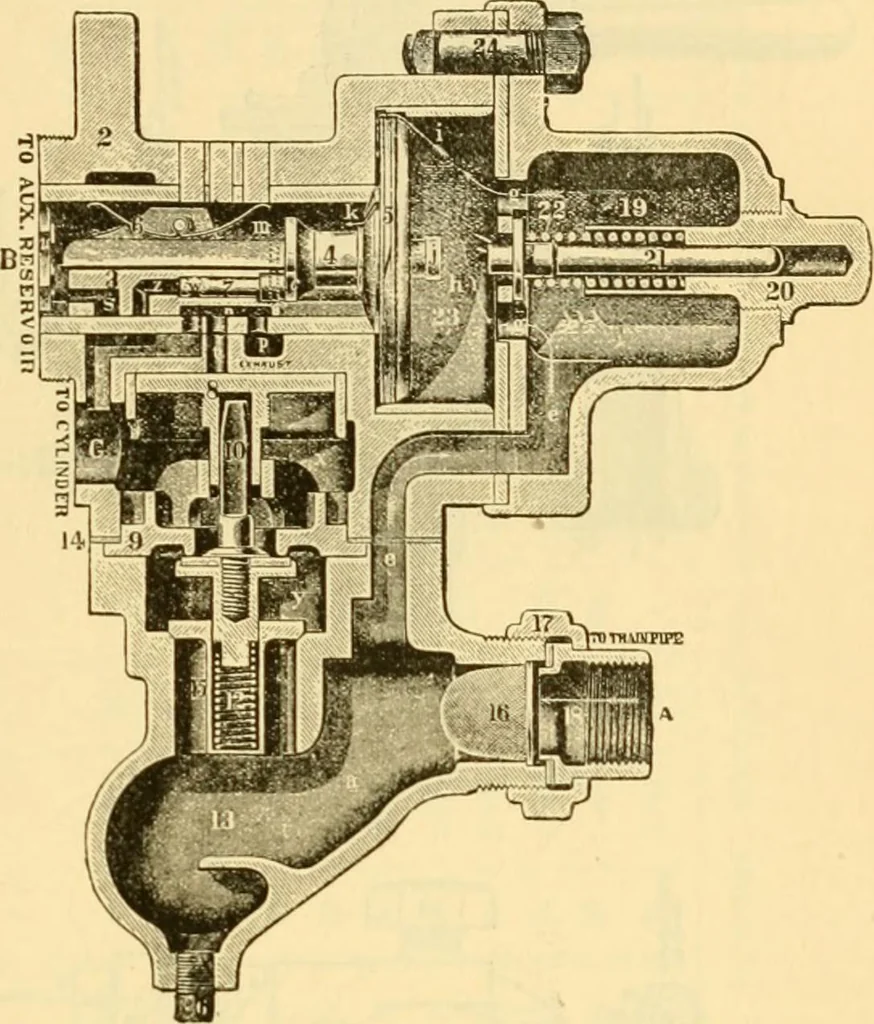

iary reservoir upon piston 8 forces it down-ward, unseating valve 10, and so permitting the air in the train brake-pipe to lift the check-valve 15, and discharge directly into the brake-cylinder; the check-valve 15 then immedi-ately closes and prevents the return of any air to the train brake-pipe.… … Fig. 1.—Quick-action triple valve. BRAKES. spring 22 may be compressed by a comparatively small difference in the air pressures uponthe sfdes of the piston 5, a small reduction only of air pressure in the train brake-pipe, ifquickly made, occurs before it is given access to the brake-cylinder…
