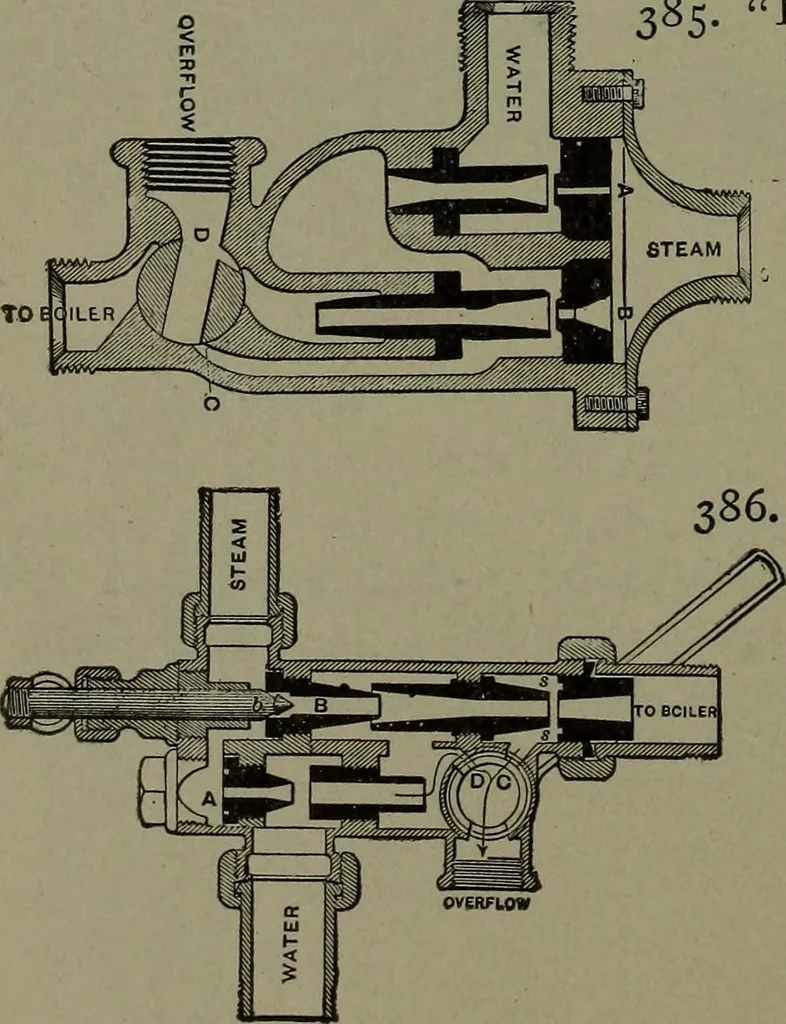

386. LEADER INJECTOR.—^A double-tube injector. Aseparate valve gives steamto the lifting nozzle A, withthe overflow cock open. Thefirst movement of the handleopens the force valve h ; afurther movement closes theoverflow to both lift and forcetubes. STEAM APPLIANCES. ior
