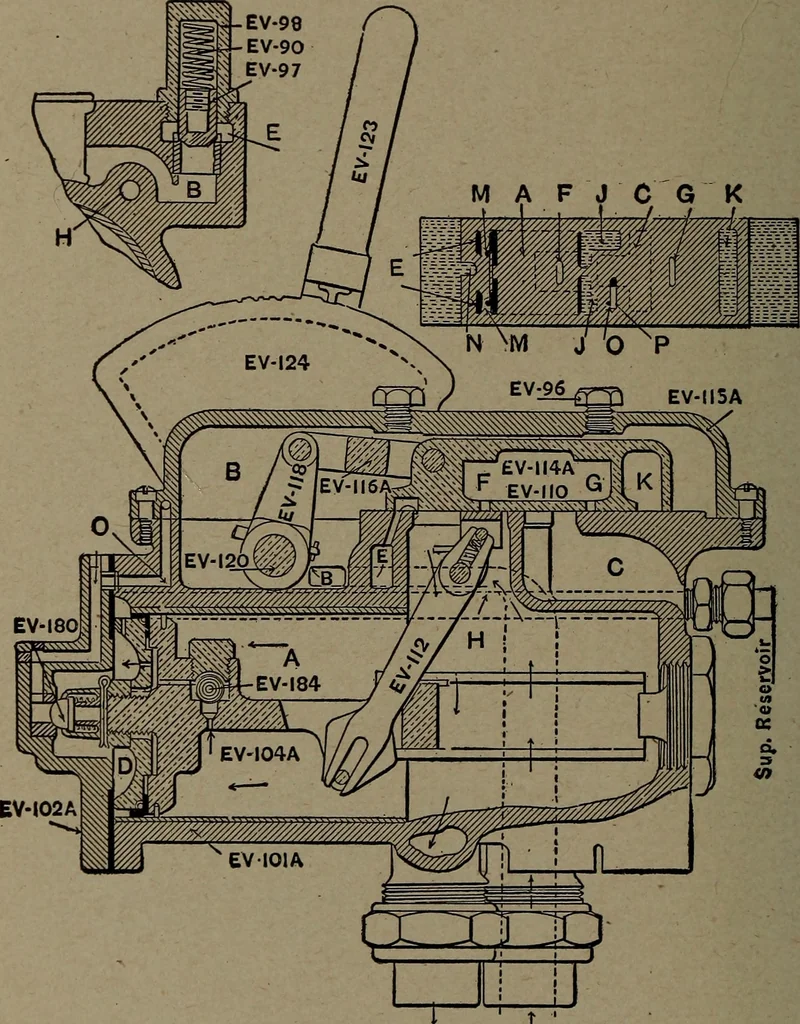

Valves As there is not material difference between the B and B-lexcept that the excess pressure valve is cast solid on the B,while on the B-l it is detachable, the same description of theoperation will answer for both. OPERATION Release position is shown in Fig 5. In this position airfrom the main… … Train Pipe Main ReservoilFig. 6. Sunning NEW YORK AIR BRAKE 331 position. The air is free to flow past by the end into cham-ber A, thence through the pipe marked train pipe, chargingthe train pipe and auxiliaries. Air from chamber A (trainpipe) is free to pass through the small port in the…
