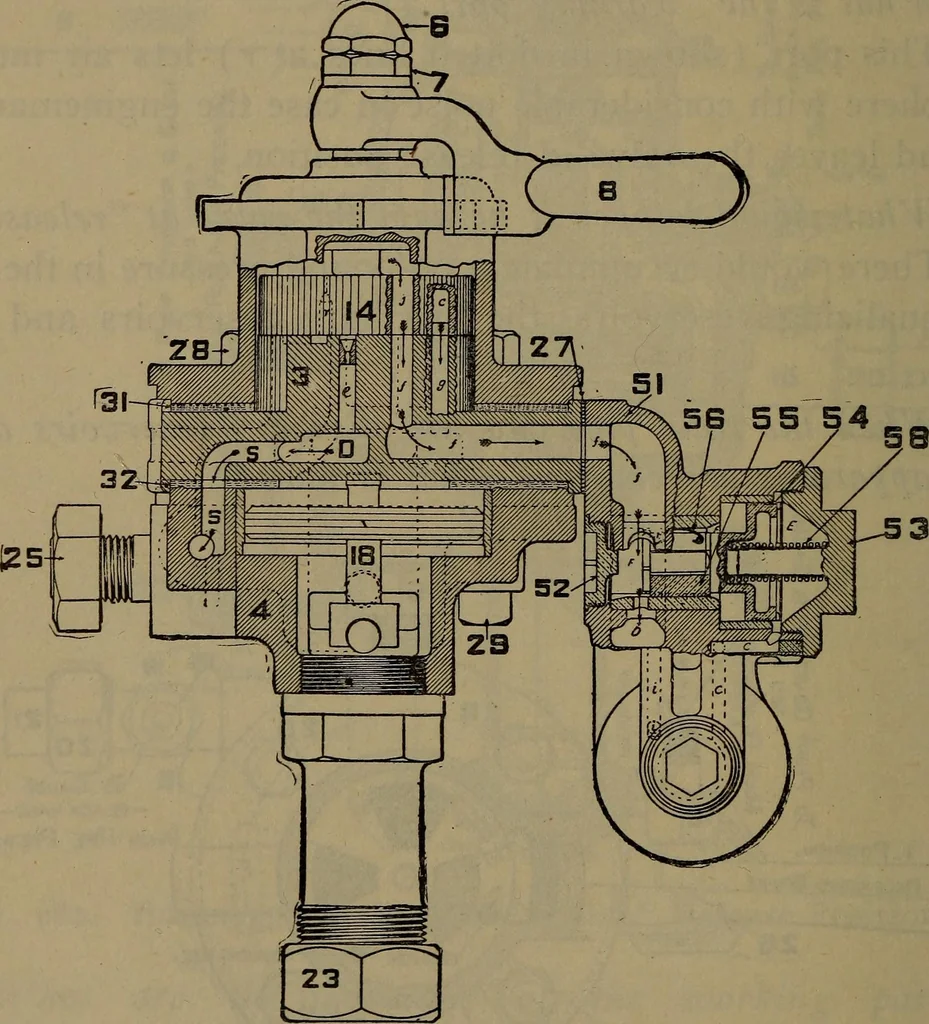

Fig. 2S3. Engineers Brake Valve, G-6, Plan View. 430 LOCOMOTIVE CATECHISM. A. The handle 8 of the brake valve is moved to 2, Figs.283 and 284, position while running. Q. Describe the purpose of the running position of the.cnginemans brake valve? A. Main-reservoir air goes from the chamber above… … Fig. 284. Engineers Brake Valve, G-6, Running Position. thence through the feed valve and passages i, I, I1, Fig. 283,into the train pipe at Y. Port g still connects D with c, and asthis last overlaps /, the equalizing reservoir is in connectionwith the train pipe. Q. When does the feed valve cut…
