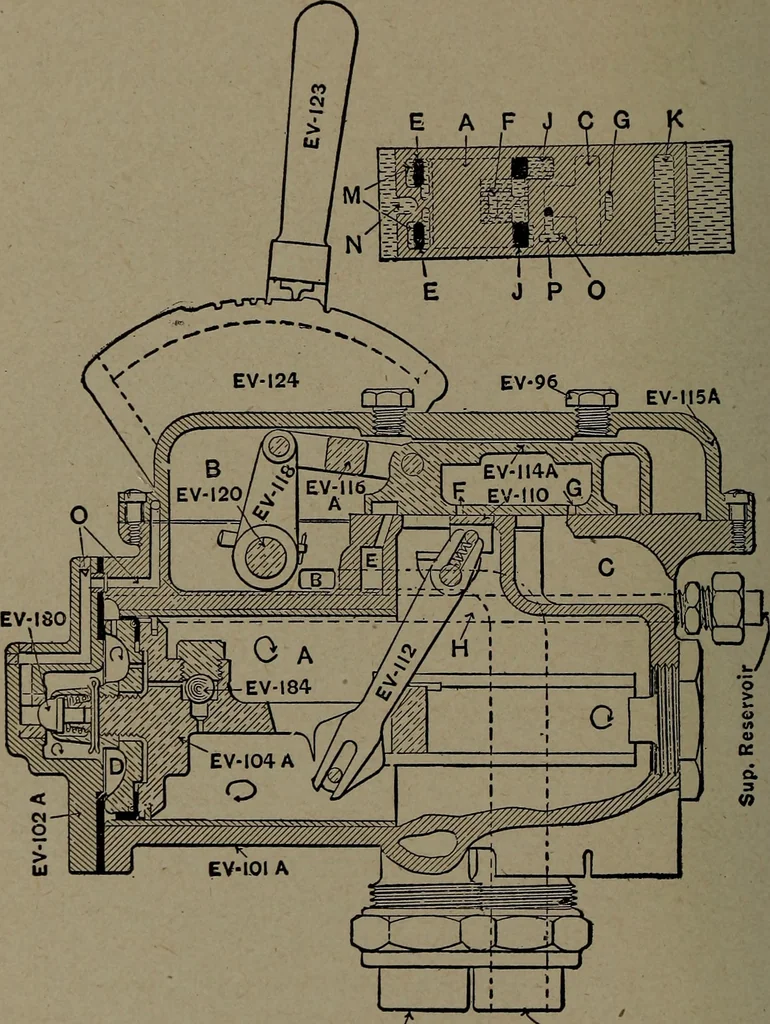

on ofabout 20 pounds; therefore, when the main reservoirpressure becomes about 20 pounds greater than that inchamber E, above the valve 97, the valve will raise and per-mit the air to pass upward through port E, cavity M in theslide valve and down into chamber A, forward of the piston104, charging… … Train Pipe Main Reservoir Fig. 7. Position Lap NEW YORK AIR BRAKE 333 to the front of the brake valve at the point marked Sup.Reservoir; therefore, main reservoir pressure should be 15or 20 pounds higher than the brake pipe, while the valve isin this position. This is the only position that the…
