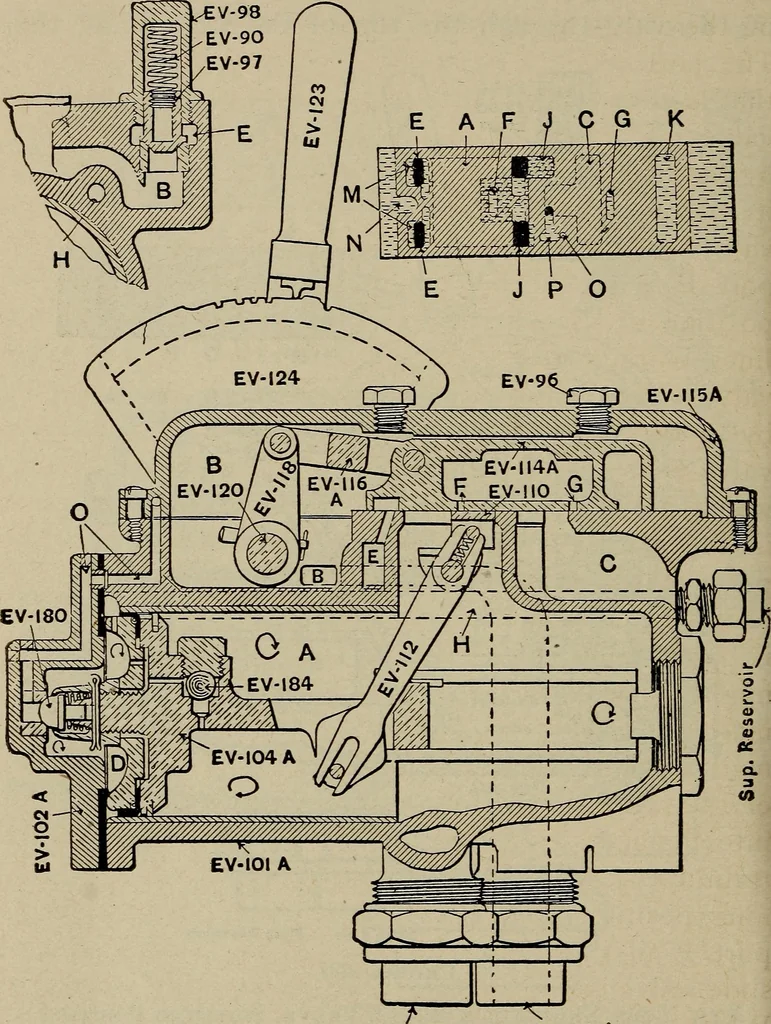

—r r • Train Pipe Main Reservoir Figure 250New York Engineers Brake Valve, Running Position the slanting lines represent the face of the main slidevalve, while the dotted horizontal lines represent theslide valve seat. It will be noticed that port K inthe main slide valve extends across nearly the… … Train Pipe Main Reservoir Figure 251New York Engineers Brake Valve, Lap Position M, and that the ports F and G are directly on the cen-ter line, while port J and cavity P are on the side, AUTOMATIC AIR BRAKES 595 therefore, when looking at the main slide valve sec*tionalized, it should be…
