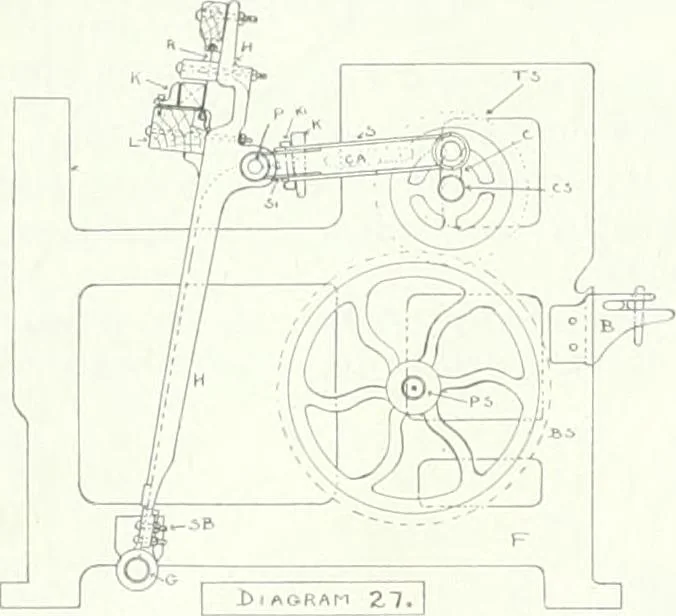

cal line isnot passed by the sley of the going part, when beatingup the weft at the front centre, as this has a tendencyto cause the sley to rub the weft, and if a fine sleybe used, the weft will often be cut, this fault not alwaysbeing detected on the cloth in the loom, especiallywhen fine backed… … tt does not occur. Soiikî looms are fitted with the con-necting pin \y-f ill. to :{ in. behind top centre; thisallows the race board to be level at the beat up of theweft, therefore, not as much chafing of the warpthreads takes place, and as the board inclines more to-wards the reed, when going…
