A treatise, giving a thorough description of the properties and supply of the fibres, as well as the various processes required for converting wool, cotton, silk from fibre to finished goods, covering both woven and knit goods ... construction of the most modern improvements to preparatory machinery ... accessories relating to construction and equipment of modern textile manufacturing plants .. (1895)

Posselt, E. A. (Emanuel Anthony), 1858-1921 · Philadelphia, E.A. Posselt; London, Sampson Low, Marston & Co · leaf 233

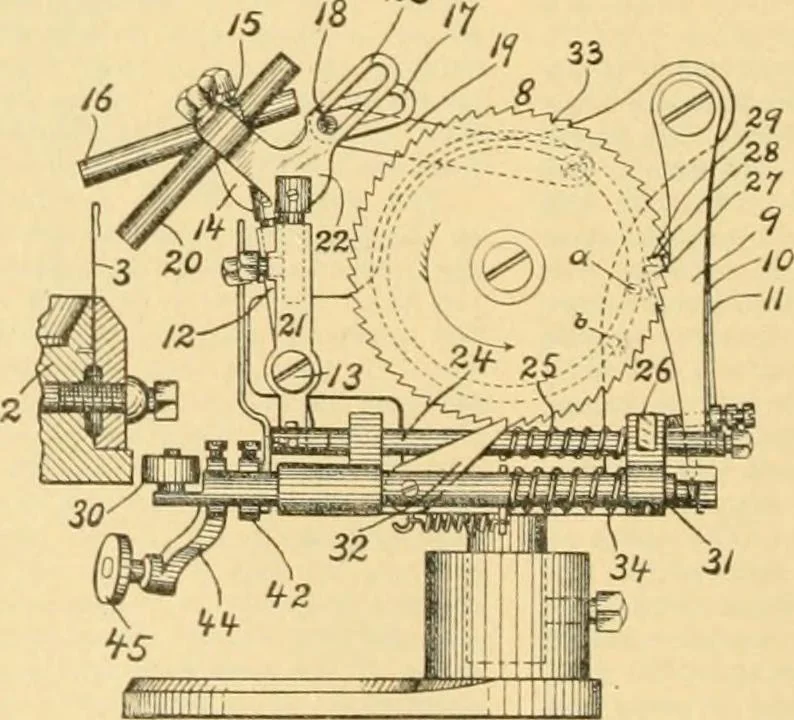

An illustration from A treatise, giving a thorough description of the properties and supply of the fibres, as well as the various processes required for converting wool, cotton, silk from fibre to finished goods, covering both woven and knit goods ... construction of the most modern improvements to preparatory machinery ... accessories relating to construction and equipment of modern textile manufacturing plants .., 1895, leaf 233
the needles. The screw il will next act on the lever10. which action will throw the yarn finger 20 upabove the needles. The pattern can of course beregulated as to size of stripes by arranging thescrews the desired distance apart on the patternwheel. lk( paltrni uhvel receives its motion from a… … f /a // 8- [V^ StA 33- M B B 1 _ . ^ — . . 3Z mm ¥J- 2& ^^a ¥S Fis-Z Fia^.Z cylinder. The surface of the cam is made soafter said cam strikes the truck 30, the latter thatwill remain at rest for a short period of time and during 233 this time both the yarn fingers 16 and 20 will be inoperative…

Textile fabrics · Textile industry · Textile machinery
