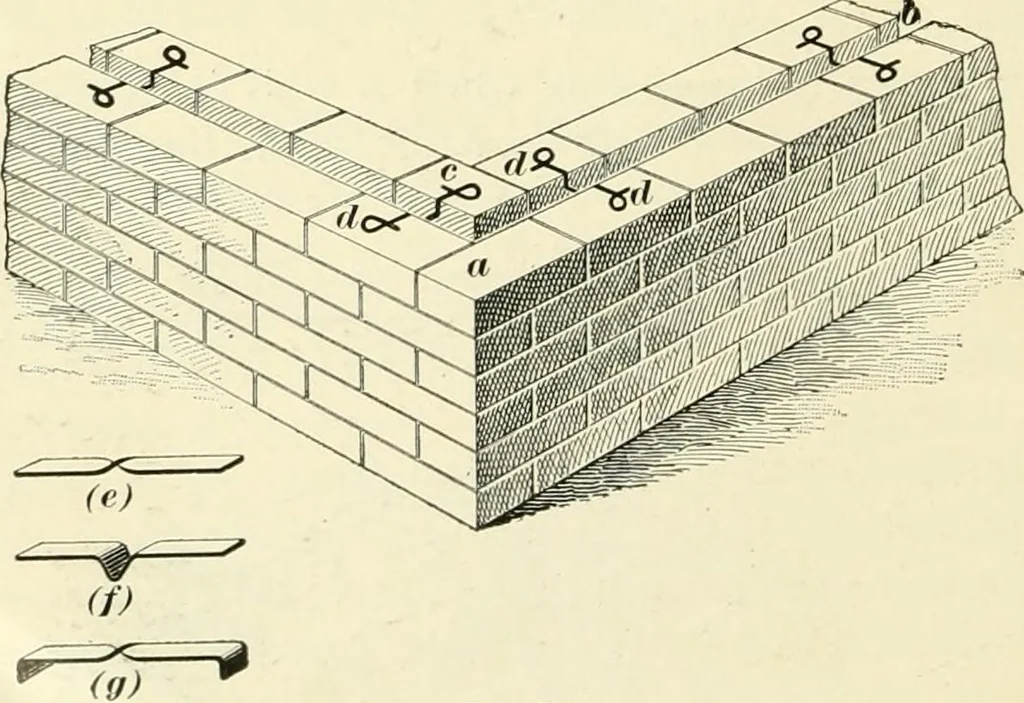

Fig. 86. miter in the front wall the front brick are also cut, as at e.The 2-inch space left in the rear wall c, where the bond brickoccurs is filled with a closer/; this closer is a quarter bat. 221. A method of bonding which retains the full benefitof the air space, is by means of metal ties, as… … Fig. 87. 4-inch wall; and d, d^ the metal ties. The tics are known asMorse ties, and are made of steel wire galvanized, and from7 to IG inches long. Other forms of tics are shown at {c), {/),and (^■); these are made of iron and can be procured of any §7 MASONRY. 119 blacksmith. The form shown at…
