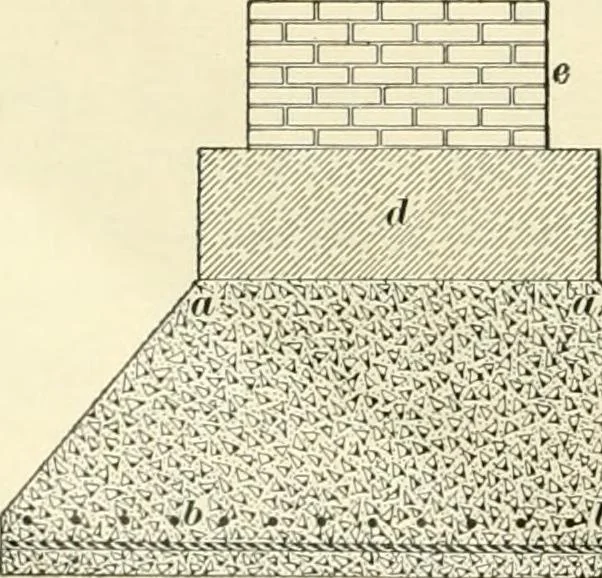

ng, where a is the concrete base, and h the twisted-iron tension bars, runningboth longitudinally andtransversely. The basestone is shown at d, andthe brick pier or super-stracture at e. In build-ing these footings, a layerof concrete, made in theproportion of 1 partcement, 3 parts sand, and5 parts… … Fig. 18.
