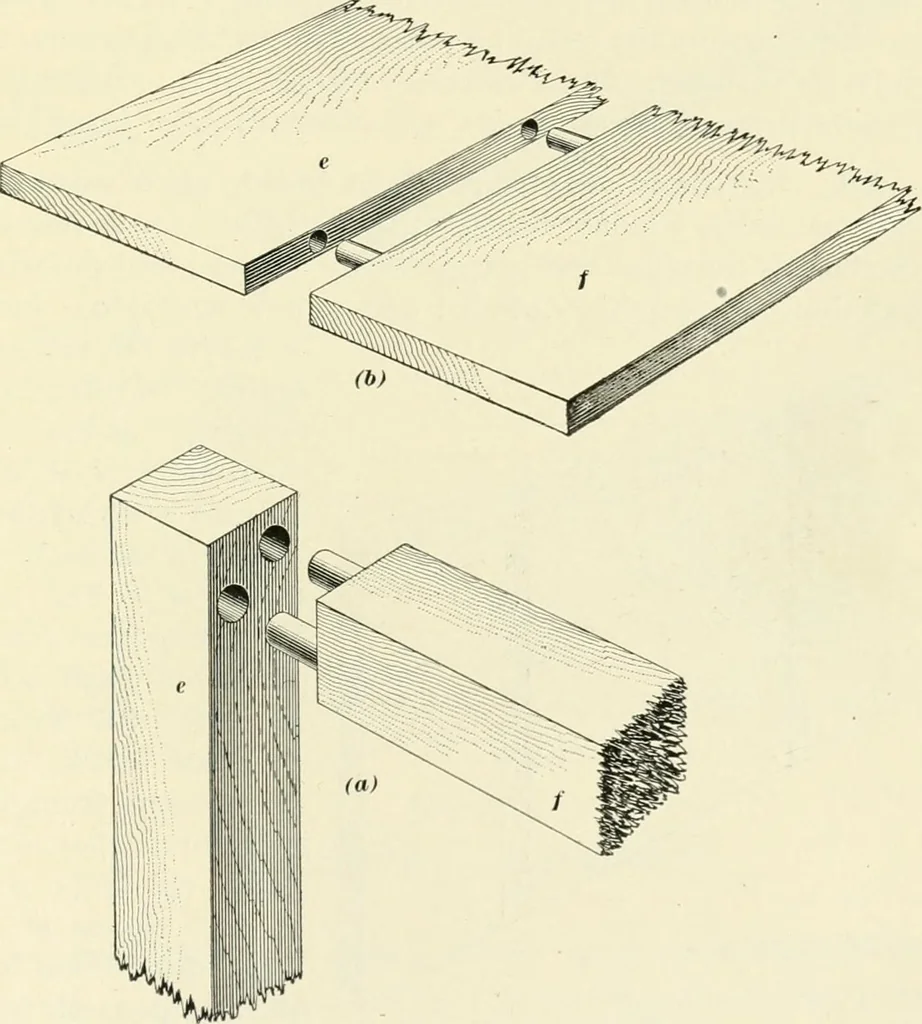

red to insure good work.. §10 JOINERY. 11 15. In all joiners work, face and edge marks are madeso as to distinguish the face and edge from which allmeasurements must be taken and all squaring done. At thesame time they serve to assist the joiner in determining theedges that are to be in contact,… … Fig. 11. between one end and a side, as at {a), or between the twomeeting edges, as at {b). Holes are bored and dowels areglued and inserted as shown. The object of the dowels is 12 JOINERY. 10 to keep the faces flush, and render the joint stiffer if sub-jected to a transverse strain. The holes…
