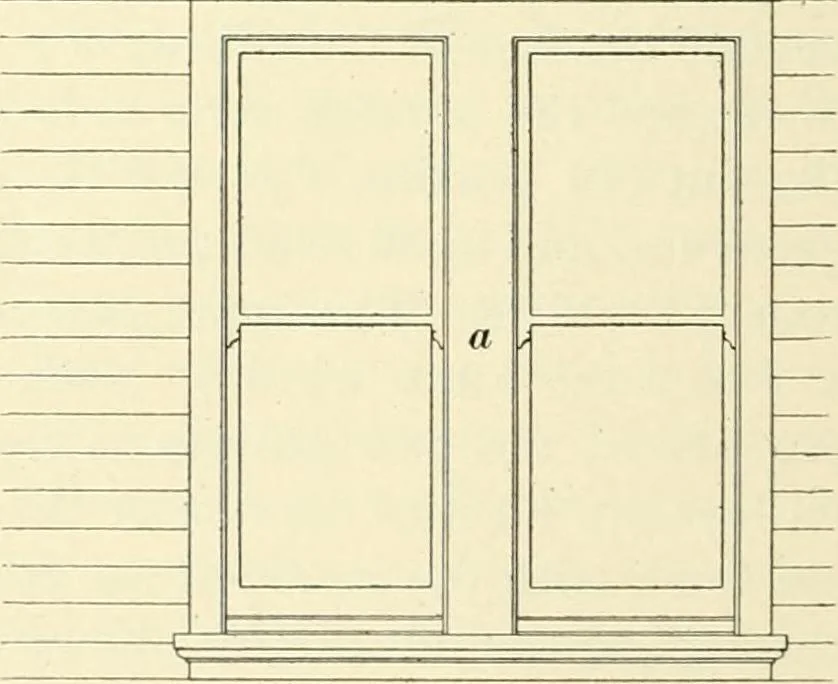

indow headat the center of the opening. Here the stud a is shown inits position at the top of the frame opening, while the win-dow head ^■ is shown 2 inches below; these 2 inches permitprojections of the stiles, shown in (r) at 7 ic, to be fitted tothe top of the opening. The inside trim J is then… … Fig. 34. Fia. 25. at o. A cap member should be placed over the upper edgeof the casing to shed the water, or a cap flashing of copperor lead may be used. §10 JOINERY. 35 This practically completes the description of the details ofthe frame for any single window in a frame building such asshown in…
