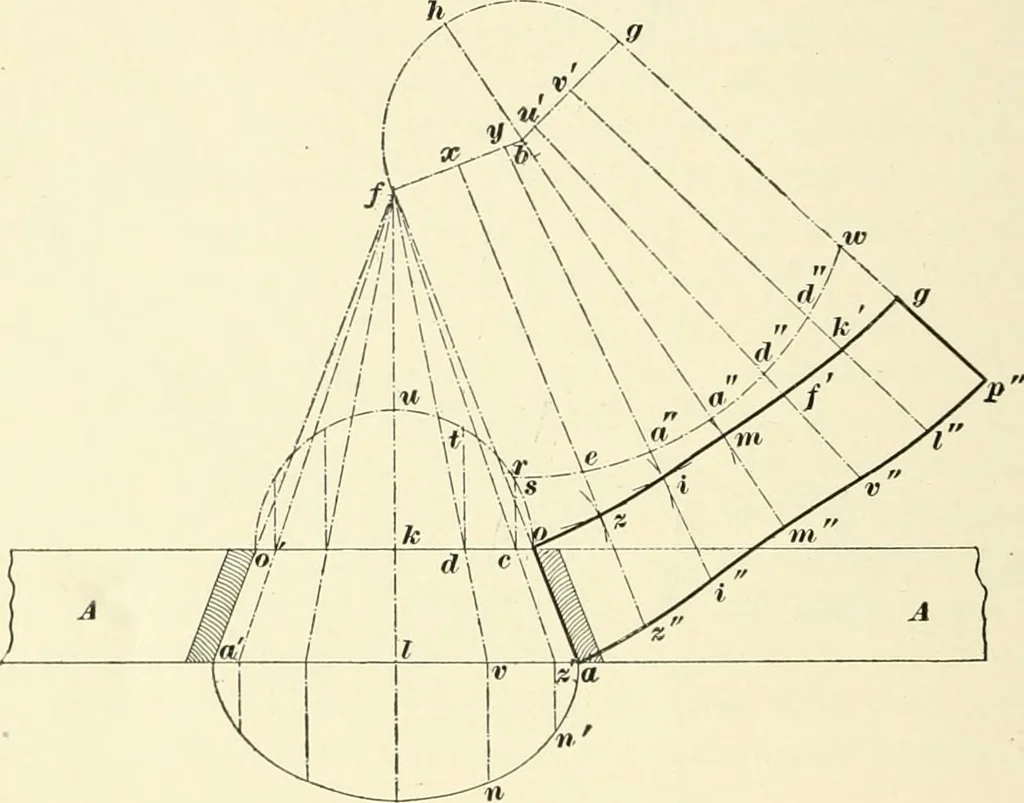

and rt:^, 00 the open-ing and splay of the jambs; continue the splayed-face lineof the jambs a0 and ao to/; through the center of the 66 JOINERY. §10 opening-, draw the center line fJ; from / as center, and witha radius ko\ draw the semicircle ou o, which will be theinterior elevation of the window… … Fig. 46. repeat the construction on the other side of the center;at right angles to a a draw ^r;/, vn, lj\ etc.; make rj ii\VII, I J, equal to ^ r, dt, kii, etc., respectively, and throughthese points trace the semiellipse annja, which will be theoutline of the exterior of the opening. To find the…
