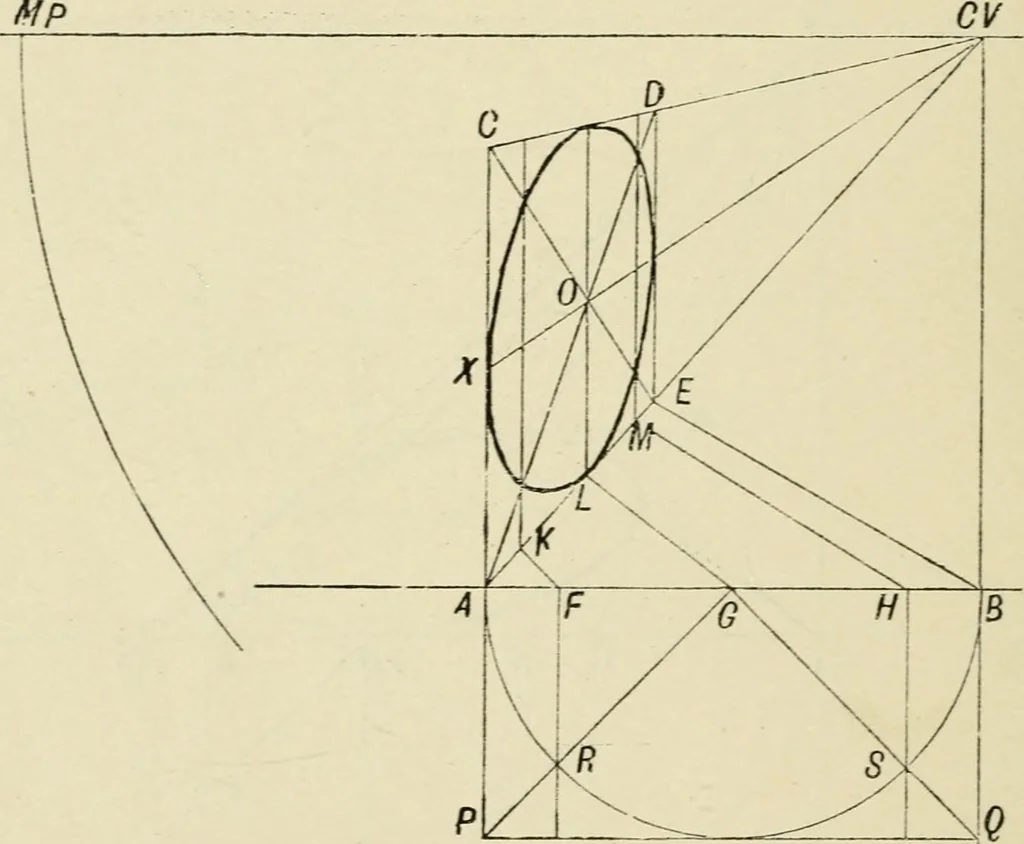

w AG and BM _J_ to AB, and draw GSM through S, 60 DRAWING. parallel to AB ; make AE = AG and AF-AB ; join F MPand E MP, also A C.V., D C.Y., B C.V. Join DG and DM,cutting curve in H and K. Draw HC and KL parallel toAG; join C C.V. and L C.V.; complete square NABP, drawdiagonals; then on the eight… … Fig. 35. Here take A 4 to left, bisect it in G; describe semi-circle, and complete oblong APQB; join GP, GQ, cuttingcurve in R, S ; draw^ RF, SH J_ to AB; join A C.V. Erectat A the perpendicular AC = AB, and bisect it in X ; joinC C.V., X C.V., also F MP, G MP, H MP, B MP. At pointsof section K, L,…
