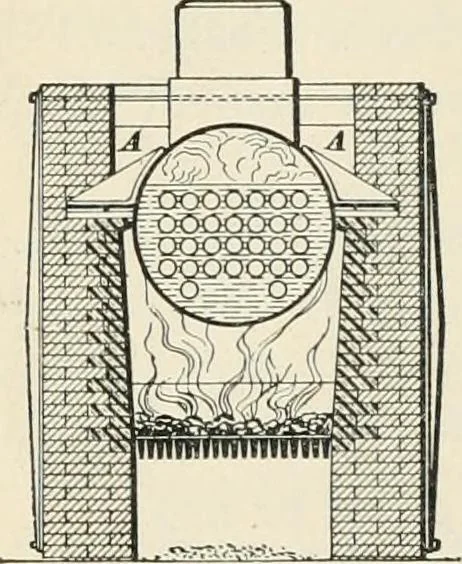

Fig. 46. … and 47. It is so called because the hot gases pass along under the shell of the boiler and returnthrough the tubes to the smokebox B;the gases then flow into the smoke-stack C. The boiler is supported uponthe side walls by means of anglebrackets A. These should carry theentire weight of the boiler.…
