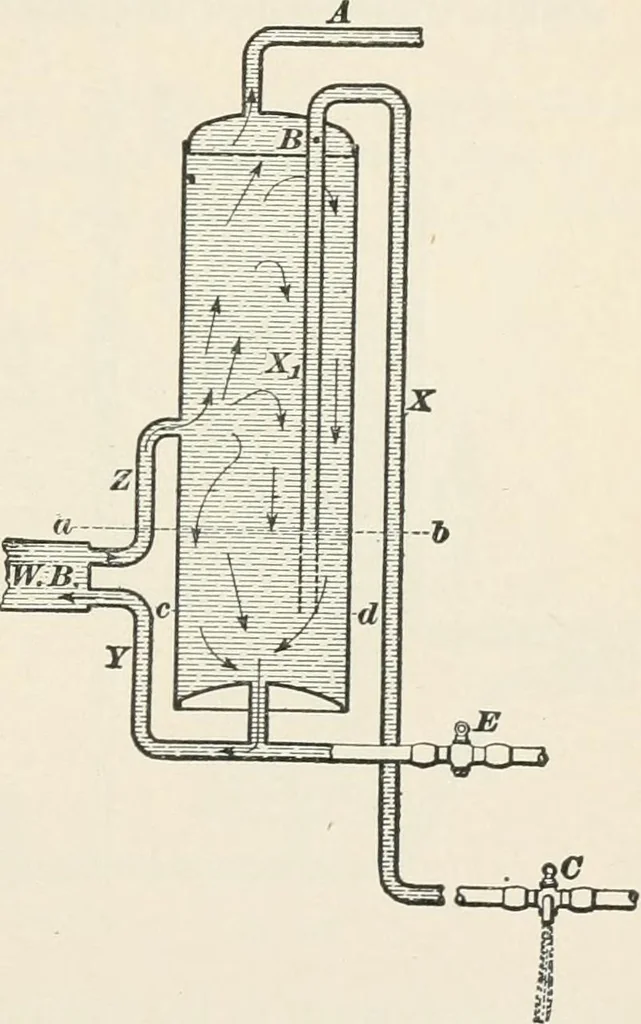

ewater is likely to be drawnout of the boiler by theopening of a faucet at alower level, as at C. Thepipe X X^ then acts as asiphon, and will run thewater out until its levelfalls to the end of the pipeX^. If X, extends to theline c d, the waterback willbe drained, which is dan-gerous, for unless… … Fig. 27. 40 PLUMBING AND GAS-FITTING. 16 |- inch, in the pipe as at B. The hot-water pipe A is con-nected at the extreme top part of the boiler. The direction of the circulation is shown by the arrows.Connections are made to the waterback by two pipes FandZ. The pipe F should be connected to the…
