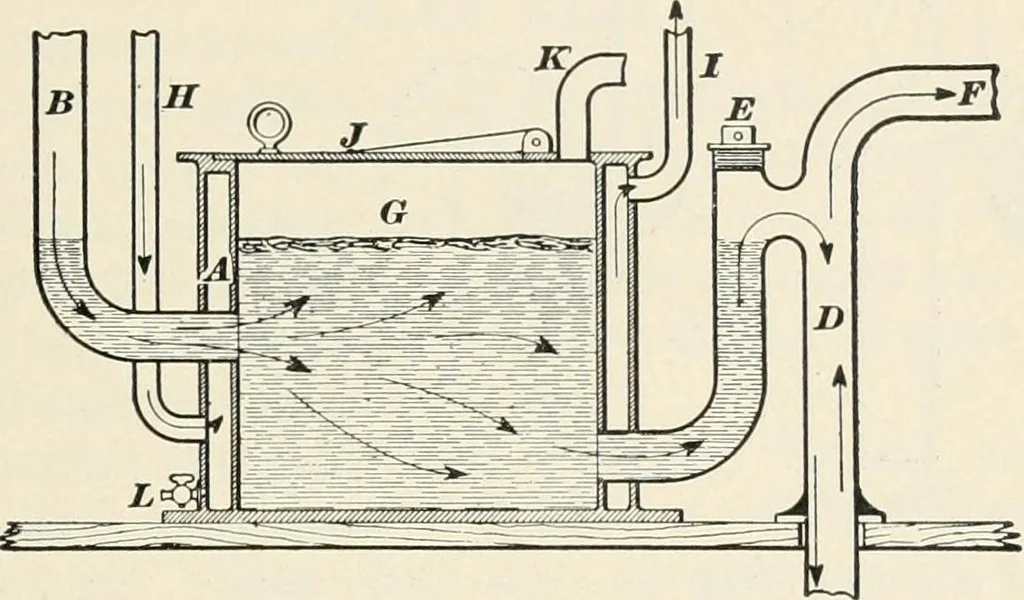

Fig. 40. §16 PLUMBING AND GAS-FITTING. 69 119. A chilling grease trap is shown in Fig. 41. ^ is the waste pipe from the sink, and D is the pipe leading tothe drain. F is the vent pipe, and -AT is a local vent, or air-relief, pipe. The contents of the trap are chilled by meansof a jacket A through… … Fig. 41. Commonly, the cold-water supply to the kitchen boiler isused for this purpose, the water entering the trap throughH and passing to the boiler through /. / is a close-fittinghinged cover. The grease chills into a cake at G and isremoved by opening the cover. .The separation of the grease…
