Hydraulic motors, with related subjects, including centrifugal pumps, pipes, and open channels, designed as a text-book for engineering schools (1905)
Church, Irving Porter, 1851-1931 · New York : J. Wiley & Sons; [etc, ] · leaf 65

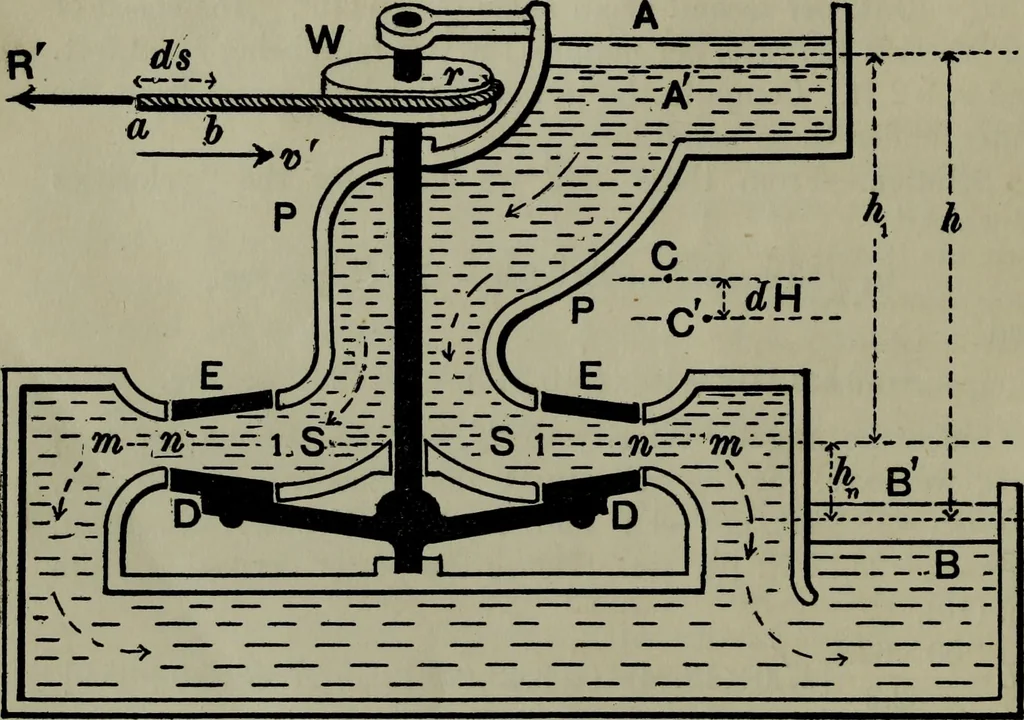

5.9] = 94,300 ft.-lbs. per sec, or 171.3 H.P. We also find that the moment of the couple to which theaction of the water on the turbine is equivalent is I (Pa), =L 4- co = 94,300 -12.56 = 7510 ft.-lbs. 38. Turbines. Fundamental Formula for Power.—In Fig.24 is shown a vertical section (pulley in… … Fig. 24. 50 § 38. GENERAL FORMULA FOR POWER. TURBINES. 5l elevation, h, of their surfaces being the head of the mil)site. The thick heavy lines indicate the turbine and its shafts,points 1 being at the entrance and n at the exit-point of awheel-channel. In this case the heights of the…
