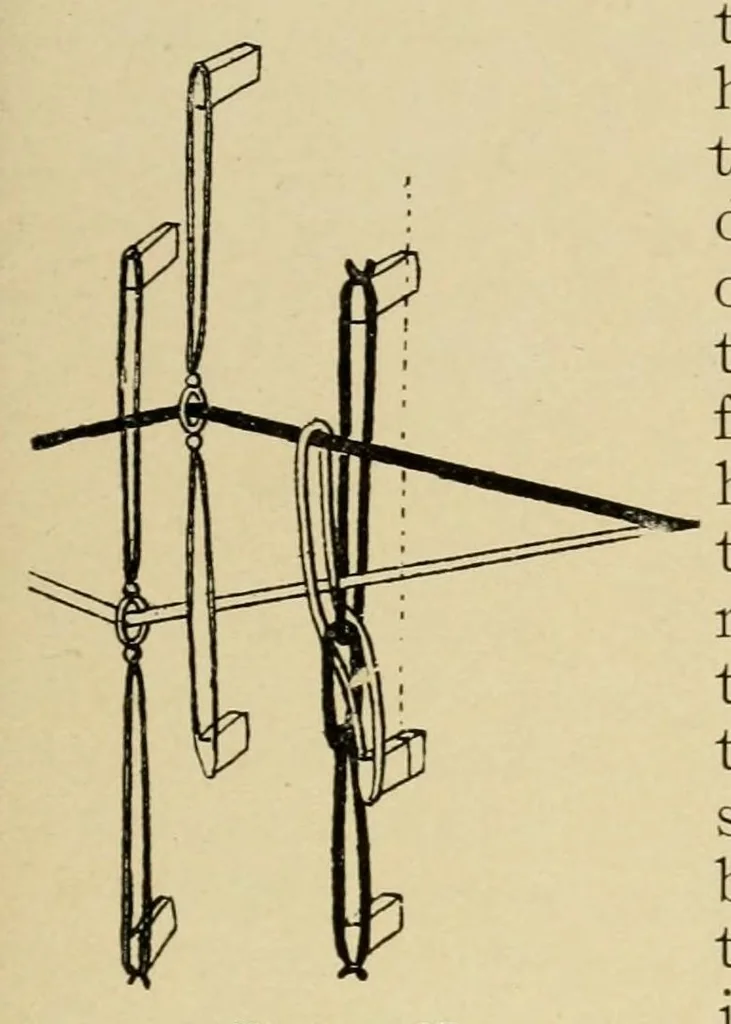

OF WOVEX FABRICS In doup weaving we distinguish three sheds, but only two of them are used in the construction of the gauze weave. The first shed, Fig. 127, illustrates that known as the half-doup, or halj- leno. It is formed by raising the ground harness, through which … is known as the open doup or open leno Figure 127 shed. The third of these sheds is used in the construction of fabrics illustrated by Fig. 130. Fig. 131 illustrates the drawing-in and chain drafts for this weave; A are the ground harness, B the doup harness, and C are the picks. The dots on each…
