Weaving; a practical guide to the mechanical construction, operation, and care of weaving machinery, and all details of the mechanical processes involved in weaving (1909)
American School of Correspondence, Nelson, H. William (Hector William), b. 1869 · Chicago, American School of Correspondence · leaf 134

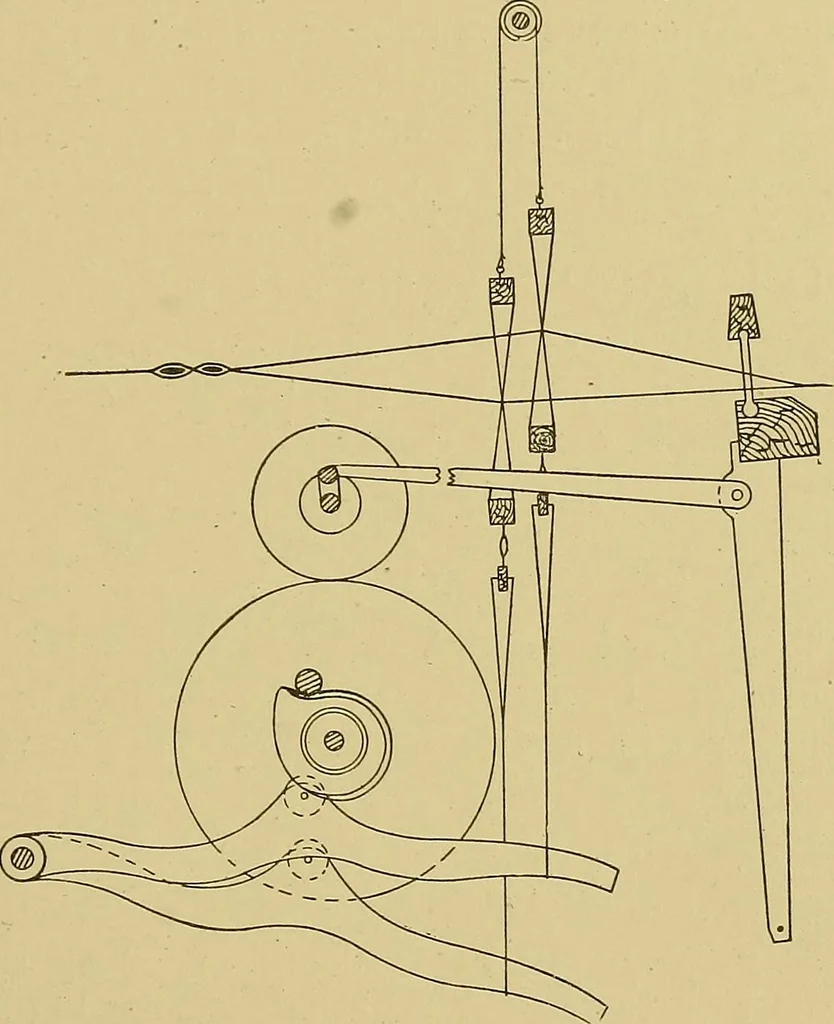

ing loom. A careful overseer or ii8 WEAVING. 107 fixer should see that this motion is giving the best results for thepower expended. It is a very easy matter for the pick motion to beso fixed that the loom actually takes ^ horse-power more to run itthan would be necessary if the motion were set… … Fig. 73. Diagram Showing the Setting of Pick Motion. but if the motion is understood, together with the reason for theshapes of its various parts, there can be little or no perceptiblecheck on the lay. The placing of the hand on the lay cap is one ofthe best ways of telling whether or not the pick…
